In the ever-evolving landscape of manufacturing, welding technology plays a crucial role in ensuring efficiency, quality, and cost-effectiveness. One of the most innovative advancements in this field is Pulsed MIG welding. This sophisticated technique not only simplifies the welding process but also enhances the overall quality of welds, making it an essential tool for manufacturers. In this comprehensive guide, we will explore the advantages of Pulsed MIG welding, how it compares to other welding methods, and provide insights on equipment selection and setup.
I. What is Pulsed MIG Welding?
Pulsed MIG welding, or Pulsed Metal Inert Gas welding, is a modern welding process that utilizes a unique transfer method between the electrode and the weld puddle. Unlike traditional MIG welding, where the electrode may come into contact with the weld puddle, Pulsed MIG maintains a non-contact transfer. This is achieved by rapidly manipulating the electrical output of the welding machine, allowing for precise control over the welding process.
The process involves creating individual droplets of molten metal at the end of the electrode with each pulse of current. The current is carefully controlled, allowing just the right amount to push each droplet into the weld puddle. This method significantly reduces spatter and provides a cleaner, more efficient weld.
II. Advantages of Pulsed MIG Welding.
Pulsed MIG welding offers a multitude of benefits that make it a preferred choice for many manufacturing applications. Below, we delve into the key advantages:
1. Cost Savings Through Material Efficiency：
One of the most compelling reasons to adopt Pulsed MIG welding is its potential for cost savings. These machines allow for a broader operating range, accommodating various wire diameters more effectively. For instance, instead of stocking multiple wire sizes like .035”, .045”, and .052”, operators can often use a single wire size across multiple applications. This consolidation leads to:
Reduced Inventory Costs: Fewer wire types mean lower inventory overhead.
Minimized Changeover Times: Switching between different wire types can slow production; Pulsed MIG reduces this downtime.
Streamlined Shielding Gas Usage: Operators can often use a single type of shielding gas for different applications, further simplifying logistics.
2. Reduction of Spatter and Fumes：
Pulsed MIG welding is designed to minimize spatter and welding fumes. This reduction translates into several benefits:
Less Clean-Up Time: With reduced spatter, there is less debris to clean up, allowing for more efficient use of labor and time.
Improved Workplace Safety: Lower fume emissions create a healthier work environment, reducing the risk of respiratory issues for operators and enhancing overall workplace safety.
3. Controlled Heat Input
Another significant advantage of Pulsed MIG welding is its ability to control heat input. This feature is particularly beneficial when working with heat-sensitive materials such as stainless steel and nickel alloys. The controlled heat input results in:
Less Distortion: Reduced heat minimizes warping and distortion of materials, leading to higher-quality welds.
Enhanced Weld Appearance: The precision of heat control contributes to a cleaner, more aesthetically pleasing weld.
4. Increased Productivity
Pulsed MIG welding machines are designed for high deposition rates, which means they can produce welds more quickly than traditional methods. Additionally, the user-friendly nature of these machines reduces the time required for training operators. This leads to:
Faster Production Times: The ability to weld quickly without sacrificing quality enhances overall productivity.
Simplified Training: New operators can become proficient more quickly, allowing for a more flexible workforce.
5. Superior Weld Quality
The culmination of all these advantages is an overall improvement in weld quality. Pulsed MIG welding produces a more stable arc, resulting in:
Stronger Welds: The precise control over the welding process leads to stronger, more reliable welds.
Better Working Conditions: Operators benefit from a cleaner working environment, with less exposure to fumes and spatter.
III. Understanding the Pulsed MIG Process
To fully appreciate the benefits of Pulsed MIG welding, it's essential to understand how the process works. The key components of the Pulsed MIG process include:
Waveform Control: Pulsed MIG welding utilizes a waveform that alternates between high and low current levels. This allows for precise control over the welding process.
Droplet Transfer: Each pulse of current forms a single droplet of molten metal, which is then transferred to the weld puddle. This method minimizes heat input and enhances the efficiency of the welding process, making it particularly advantageous when working with thin materials or in applications that require high precision.
Synergic Control: Modern Pulsed MIG machines come equipped with synergic control systems. These systems automatically adjust the welding parameters (like voltage and wire feed speed) based on the chosen settings. When an operator adjusts one setting, such as the wire feed speed, the machine automatically calculates and adjusts the other parameters, simplifying the welding process for both seasoned and novice welders.
Adaptive Processes: Advanced technology in Pulsed MIG welding machines often includes adaptive processes that can automatically adjust to variations in arc length, torch angle, and workpiece gap. This increases the consistency of the welding process and helps maintain quality, even under varying work conditions.
IV. Comparison with Conventional Welding Methods.
When compared to traditional welding methods such as continuous MIG welding, TIG welding, and flux-cored arc welding, pulsed MIG welding offers several distinct advantages. Unlike continuous MIG welding, which applies a constant current throughout the welding process, pulsed MIG welding modulates the current between high and low levels, resulting in lower heat input and reduced distortion.

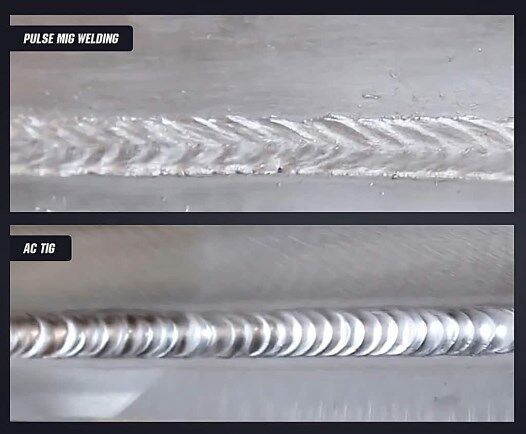

Similarly, compared to TIG welding, which relies on a non-consumable tungsten electrode and inert gas shielding, pulsed MIG welding offers higher deposition rates and greater productivity, making it ideal for high-volume manufacturing environments. Additionally, pulsed MIG welding eliminates the need for complex torch manipulation and manual filler metal feeding, simplifying the welding process and reducing operator fatigue.
In contrast to flux-cored arc welding, which utilizes a flux-cored wire and active gas shielding, pulsed MIG welding offers cleaner, more aesthetically pleasing welds with minimal spatter and slag formation. This makes it particularly well-suited for applications where visual appearance and surface finish are important, such as automotive body panel fabrication and architectural metalwork.
Learn more about MIG, Pulsed MIG, and Double Pulsed MIG Explained.
V. Equipment Selection for Pulsed MIG Welding
When considering the transition to Pulsed MIG welding, the choice of equipment is paramount. Here are some essential aspects to consider when selecting equipment for Pulsed MIG welding:
1. Choose Equipment with a Broad Range of Processes
Selecting the right welding machine begins with understanding its operating capabilities. Operators should not assume that they need a machine with the same amperage as their previous conventional MIG setup. For example, a 400 amp Pulsed MIG machine might offer advantages due to its wider operating range, allowing operators to adapt to various welding scenarios. The following considerations are crucial:
Operating Range: Look for machines that can operate effectively across a broad spectrum of amperage and wire feed speeds.
Versatility: The ability to perform various welding processes (like standard MIG, Pulsed MIG, and even TIG) can enhance productivity and reduce equipment costs.
2. Look for Advanced Synergic Control
Modern Pulsed MIG welding machines are equipped with advanced synergic controls that automatically adjust parameters based on the wire feed speed the operator selects.
Ease of Use: A single-knob operation simplifies the setup, making these machines accessible even for novice welders.
Adaptability: Advanced synergic systems can adjust for variations in welding conditions such as stick out, gap, or angle, ensuring optimal performance without requiring extensive operator experience.
3. Invest in Dual Procedure Guns
For operators dealing with a variety of fabrication processes, investing in dual procedure guns for Pulsed MIG can greatly enhance flexibility.
Ease of Switching: Dual procedure guns allow the operator to easily switch between welding procedures or wire types, increasing operational versatility.
Compatibility Check: Ensure that your wire feeder is compatible with dual procedure guns to maximize the equipment’s potential.
4. Select the Right Welding Gun Size
Due to the higher currents typically associated with Pulsed MIG processes, selecting the appropriate welding gun size is crucial.
Cooling Options: Larger or water-cooled guns are recommended to manage the heat generated during high-current pulses effectively.
Duty Cycle: Ensure that the chosen welding gun can handle the duty cycle required for your specific tasks to prevent overheating and premature wear.
5. Consider Work Voltage Sensing
If welding operations are conducted far from the power source, work voltage sensing can be a significant advantage. Some machines feature this option, improving pulsing performance despite long cable runs.
Connection Stability: This feature enables the machine to sense voltage at both the output studs and the workpiece, ensuring stable operation.
Flexible Setup: Running a separate lead to the workpiece can greatly enhance performance in distant setups.
VI. Setup Tips for Pulsed MIG Welding
When setting up a Pulsed MIG welding system, operators should take a few extra precautions compared to traditional MIG setups to ensure optimal performance and safety.
1. Ensure a Robust Ground Connection
Having a good ground connection is critical for effective Pulsed MIG welding due to the higher pulse currents involved.
Grounding Quality: Ensure that the ground clamp is securely attached to clean, bare metal for optimal conductivity.
Regular Checks: Regularly inspect the grounding setup to ensure there are no connection problems that could affect welding performance.
2. Minimize Cable Lengths to Reduce Inductance
Reducing cable lengths is vital for maintaining the integrity of the welding process.
Keep it Short: As a general rule, try to keep the distance under 50 feet. Longer cables can increase inductance, which can smooth out the pulse and reduce effectiveness.
Avoid Coiling Cables: Coiling excess cable can introduce inductance. If possible, use only the length of cable necessary to maintain an effective setup.
3. Keep Cables Together and Avoid Loops
Cable management is essential in Pulsed MIG welding setups. Keeping cables organized can help reduce potential issues related to inductance.
Stay Flat: Keep welding and power cables together but avoid large loops, which can create inductive effects that interfere with the welding arc.
Regular Inspections: Periodically check your setup for loose connections or cable damage, which can affect performance.
Conclusion: Embrace the Future of Welding with Pulsed MIG Technology
The adoption of Pulsed MIG welding offers a range of benefits that position it as a game-changer in the manufacturing and fabrication industries. With features such as cost savings, enhanced weld quality, reduced operation complexity, and improved productivity, this welding technique is not just a temporary trend but a process that can transform welding practices in the long run.
While the initial investment in Pulsed MIG technology may seem daunting, the long-term benefits far outweigh the upfront costs. Evaluating the total cost of ownership, including potential savings from reduced material waste, improved labor efficiency, and enhanced weld quality, highlights the financial viability of this investment.
In conclusion, whether you’re a seasoned professional or just starting in the field of welding, it’s time to embrace the technological advancements that Pulsed MIG welding has to offer. By understanding the equipment, selecting the right tools, and implementing effective setup procedures, operators can leverage this innovative process to achieve superior results, fulfilling both productivity and quality demands effectively.
