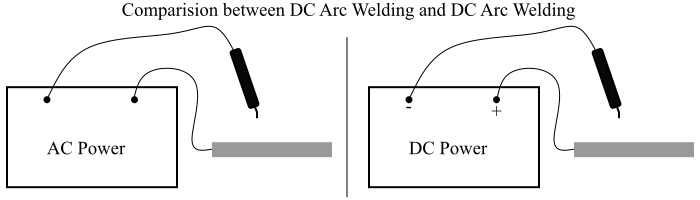

Arc welding stands out among various welding techniques for its versatility and effectiveness. Within arc welding, two primary types dominate the field: AC (Alternating Current) Arc Welding and DC (Direct Current) Arc Welding. This article will make a detailed comparsion of AC Arc Welding and DC Arc Welding.
I. Basics of Arc Welding

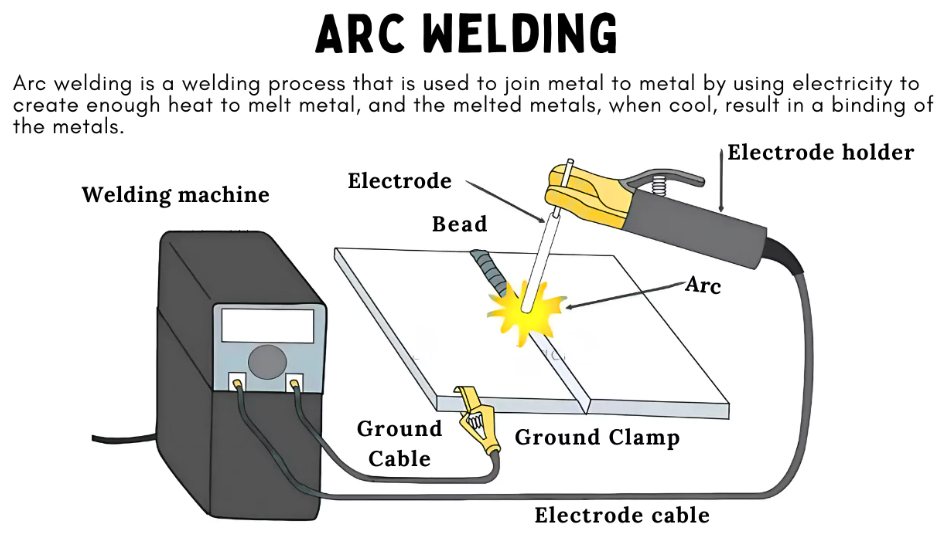

Arc welding involves using an electric arc to melt and join metals. The process requires a power supply to create an electric arc between an electrode and the base material. The intense heat generated by the arc melts the metals, allowing them to fuse together upon cooling, forming a strong joint.
Arc welding can be performed with various power sources, including AC and DC.
II. AC Arc Welding: An Overview
1) What is AC Arc Welding?
AC arc welding uses alternating current as its power source. In this process, the electric current alternates direction periodically, typically at a frequency of 60 Hz (cycles per second) in most countries. This means the polarity of the welding electrode switches between positive and negative multiple times per second.
2) Advantages of AC Arc Welding
Cost-Effective Power Supply: AC power sources are generally less expensive to produce and maintain compared to DC power sources. This cost advantage makes AC welding machines a popular choice for budget-conscious operations.
Reduced Arc Blow: Arc blow, a common issue in DC welding, occurs when the arc is deflected due to magnetic fields. In AC welding, the alternating current reduces the risk of arc blow, providing a more stable arc.
Better for Welding Magnetic Materials: AC welding is particularly effective for welding materials that are prone to magnetism, such as certain types of steel. The alternating current helps to mitigate the magnetic interference that can disrupt the welding process.
Balanced Heat Distribution: The alternating nature of AC ensures a more balanced heat distribution between the electrode and the workpiece. This balance can be advantageous for specific welding applications where controlled heat input is critical.
3) Disadvantages of AC Arc Welding
Less Penetration: AC welding typically provides less penetration compared to DC welding. This limitation can be a drawback for applications requiring deep, strong welds.
Difficulty in Striking and Maintaining Arc: Striking and maintaining a stable arc can be more challenging with AC welding. This can lead to increased difficulty for beginners or those working in less-than-ideal conditions.
Higher Noise Levels: AC welding often produces more noise than DC welding, which can be a consideration in environments where noise levels are a concern.
III. DC Arc Welding: An Overview
1) What is DC Arc Welding?
DC arc welding utilizes direct current as its power source. In this process, the electric current flows in one constant direction, either from the electrode to the workpiece (DCEN: Direct Current Electrode Negative) or from the workpiece to the electrode (DCEP: Direct Current Electrode Positive).
2) Advantages of DC Arc Welding
Stable Arc: DC welding provides a more stable and consistent arc compared to AC welding. This stability results in smoother welds and reduces spatter, leading to a cleaner finish.
Versatility in Applications: DC welding is versatile and suitable for a wide range of welding tasks, from delicate, thin metals to heavy-duty industrial applications.
Less Spatter and Clean Welds: The constant flow of direct current reduces the amount of spatter produced during welding, resulting in cleaner welds that require less post-weld cleaning.
3) Disadvantages of DC Arc Welding
Higher Cost: DC power sources are typically more expensive than AC power sources. The higher initial cost can be a consideration for small-scale operations or budget-limited projects.
Arc Blow Issues: DC welding is more susceptible to arc blow, especially when welding magnetic materials. Arc blow can cause the arc to become unstable, potentially compromising weld quality.
IV. Detailed Comparison: AC vs. DC Arc Welding
1) Penetration and Weld Strength
AC Welding: Provides less penetration, making it suitable for thinner materials or applications where excessive penetration might cause issues.
DC Welding: Offers deeper penetration, ideal for thicker materials and applications requiring robust, strong welds.
2) Arc Stability
AC Welding: Can be less stable, with more difficulty in striking and maintaining the arc, leading to potential challenges for beginners.
DC Welding: Provides a stable and consistent arc, easier to manage, resulting in smoother welds with less spatter.
3) Heat Distribution
AC Welding: Alternating current ensures more balanced heat distribution, beneficial for specific welding scenarios where controlled heat input is necessary.
DC Welding: Constant current can create a more localized heat zone, potentially leading to more concentrated heat input in the weld area.
4) Equipment Cost
AC Welding: Generally involves lower initial costs for equipment and maintenance, making it more accessible for budget-conscious operations.
DC Welding: Typically involves higher initial equipment costs, which can be a consideration for small-scale or budget-limited projects.
5) Suitability for Materials
AC Welding: Better suited for welding magnetic materials and applications where reduced arc blow is beneficial.
DC Welding: Versatile for a wide range of materials, from thin metals to thick industrial applications.
6) Noise Levels
AC Welding: Tends to produce higher noise levels, which can be a consideration in noise-sensitive environments.
DC Welding: Generally quieter, which can be advantageous in environments where noise reduction is essential.
V. Applications and Industry Use Cases
1) AC Arc Welding Applications
Repair and Maintenance: AC welding is often used in repair and maintenance tasks due to its cost-effectiveness and ability to handle a variety of materials.
Construction: Suitable for construction applications where magnetic materials are common, and balanced heat distribution is required.
General Fabrication: Ideal for general fabrication tasks that do not require deep penetration or extremely strong welds.
2) DC Arc Welding Applications
Industrial Manufacturing: DC welding is preferred in industrial manufacturing due to its deep penetration and strong welds, suitable for heavy-duty applications.
Automotive Industry: Used extensively in the automotive industry for welding components that require high strength and precision.
Aerospace: Chosen for aerospace applications where precision, clean welds, and strong joints are critical.
Pipeline Construction: Utilized in pipeline construction for its ability to create strong, reliable welds on thick materials.
VI. Choosing the Right Welding Method
1) Factors to Consider
Material Type and Thickness: The type and thickness of the material being welded play a crucial role in choosing between AC and DC welding. DC welding is generally better for thicker materials, while AC welding can be sufficient for thinner materials or those prone to magnetism.
Welding Position: The position of the weld (flat, vertical, overhead) can also influence the choice. DC welding offers more control and stability, making it suitable for various welding positions.
Cost Constraints: Budget considerations are essential. While AC welding equipment is typically less expensive, the specific requirements of the project might necessitate the higher initial investment in DC welding equipment.
Weld Quality Requirements: The required quality and strength of the welds are critical factors. For high-quality, strong welds, DC welding is usually the preferred choice.
Operator Skill Level: The skill level of the operator can impact the choice of welding method. DC welding is often easier for operators to manage, providing a more stable arc and cleaner welds.
2) Making an Informed Decision
Choosing between AC and DC arc welding requires a comprehensive understanding of the specific project requirements, material properties, and desired weld quality. By considering these factors, welders and project managers can select the most suitable welding method, ensuring optimal results and efficiency.
VII. Conclusion
Understanding the differences between AC arc welding and DC arc welding is essential for selecting the right method for your specific needs. By carefully considering factors such as material type, welding position, cost constraints, and desired weld quality, you can make an informed decision that ensures successful welding outcomes.
