the outcome. Pulsed MIG (GMAW-P) welding has emerged as a groundbreaking technique, particularly in aluminum fabrication. Known for its precision, control, and efficiency, Pulsed MIG welding is revolutionizing the way professionals and hobbyists alike approach aluminum projects. Whether you're involved in automotive repairs, aerospace manufacturing, or artistic metalwork, understanding and mastering Pulsed MIG welding can elevate your craft to new heights.
I. Understanding Pulsed MIG Welding
Pulsed MIG welding is an advanced version of traditional MIG welding. Instead of a constant current, it uses a pulsating current that rapidly switches between high and low amperage. This pulsation offers greater control over the weld pool, making it ideal for delicate materials like aluminum. The process minimizes heat input, reduces distortion, and enhances the overall quality of the weld.

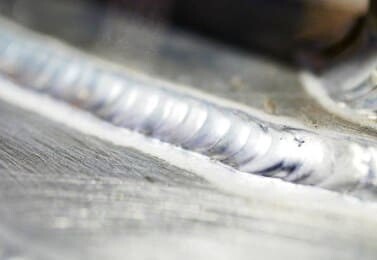

II. Benefits of Pulsed MIG Welding for Aluminum
The unique characteristics of Pulsed MIG welding make it a preferred choice for aluminum fabrication. Here are some of its key advantages:
1) Unmatched Precision and Control
Consistent Welds: The pulsating current ensures uniform deposition of the weld metal, resulting in consistent and high-quality welds.
Reduced Distortion: By controlling heat input, Pulsed MIG welding minimizes warping and distortion, preserving the structural integrity of the aluminum.
2) Lower Heat Input
Aluminum is highly conductive and sensitive to heat, making it prone to burn-through and distortion. Pulsed MIG welding addresses this challenge by:
Regulating Heat: The pulsating current allows for precise control over heat input, preventing overheating and ensuring a stable welding process.
Preventing Burn-Through: This is especially crucial when working with thin aluminum sheets or intricate designs.
3) Minimized Spatter and Fumes
Cleaner Welds: The controlled current in Pulsed MIG welding reduces spatter, leading to cleaner welds and less post-weld cleanup.
Healthier Environment: Reduced fume generation creates a safer working environment, which is especially important in industries with strict safety regulations.
4) Increased Efficiency and Productivity
Faster Welding Speeds: The optimized heat input and consistent weld quality allow for faster welding speeds without compromising results.
Less Downtime: With reduced spatter and cleanup, welders can focus more on the task at hand, increasing overall productivity.
5) Versatility in Applications
Pulsed MIG welding is adaptable to various aluminum thicknesses and joint configurations, making it suitable for:
Thin Gauge Aluminum: Ideal for automotive body panels and lightweight structural components.
Thicker Aluminum: Perfect for aerospace parts, marine hardware, and industrial machinery.
III. Applications of Pulsed MIG Welding in Aluminum Fabrication
The versatility of Pulsed MIG welding makes it a go-to technique across multiple industries. Here are some of its most common applications:
1) Automotive Industry
Body Panels and Structural Components: Pulsed MIG welding ensures strong, durable welds for vehicle frames and body panels.
Custom Modifications: From fabricating unique car parts to repairing damaged components, Pulsed MIG welding offers precision and flexibility.
2) Aerospace Industry
Lightweight Components: Pulsed MIG welding is essential for aerospace applications because it can weld thin, high-strength aluminum alloys without distortion.
Precision Parts: Pulsed MIG welding delivers the precision required for critical aerospace parts, from engine components to structural frames.
3) Marine Industry
Boat and Ship Repairs: Aluminum is widely used in marine applications due to its corrosion resistance. Pulsed MIG welding excels in repairing and fabricating marine hardware.
Custom Fabrications: Whether it's creating aluminum pontoons or marine fittings, Pulsed MIG welding offers durability and aesthetic appeal.
4) Architectural and Decorative Metalwork
Aluminum Structures: From intricate decorative features to large structural elements, Pulsed MIG welding ensures seamless and visually appealing joints.
Modern Designs: The precision and control of Pulsed MIG welding make it ideal for creating modern, minimalist designs in aluminum.
IV. Pulsed MIG Welding Techniques for Aluminum
Mastering Pulsed MIG welding requires a combination of skill and knowledge. Here are some essential techniques to help you get started:
1) Equipment Setup
Welder Settings: Adjust the pulse frequency, peak current, and background current according to the thickness and type of aluminum you're working with.
Wire Selection: Use high-quality aluminum wires, such as ER4043 or ER5356, for optimal results.
Shielding Gas: Pure Argon (99.99%) is typically used for aluminum welding to prevent contamination and ensure clean welds.
2) Gun Technique
Gun Angle: Maintain a 10-15° push angle to achieve flat, consistent weld beads.
Travel Speed: Keep a steady, moderate travel speed to ensure full penetration and avoid overheating.
3) Surface Preparation
Cleaning: Remove all contaminants, including oil, grease, and oxidation, using a wire brush or chemical cleaner.
Fit-Up: Ensure accurate fit-up and secure clamping to prevent movement during welding.
4) Welding Positions
Flat Position: Ideal for body panels and flat surfaces. Use a slight oscillation to fill gaps and prevent undercuts.
Vertical Position: For upright components, adjust the gun angle slightly downward to maintain control over the weld pool.
Overhead Position: This is the most challenging position. Use a faster travel speed and reduce settings to prevent the weld pool from sagging.
V. Tips for Achieving Perfect Aluminum Welds
To get the best results from Pulsed MIG welding, keep the following tips in mind:
1) Practice on Scrap Metal
Before working on your actual project, practice on scrap aluminum to fine-tune your settings and technique.
2) Use the Correct Parameters
Always refer to the manufacturer's guidelines for recommended settings, but be prepared to adjust based on the specific requirements of your project.
3) Monitor and Adjust
Keep an eye on the weld pool and adjust your technique as needed. Small changes in travel speed or gun angle can make a significant difference in weld quality.
4) Avoid Overheating
Aluminum has a lower melting point than steel, so it's crucial to avoid overheating. Use the pulsing action to regulate heat input and prevent burn-through.
5) Stay Safe
Always wear proper PPE, including a welding helmet, gloves, and flame-resistant clothing. Ensure good ventilation to avoid inhaling fumes.
VI. Common Challenges and Solutions
Even with the best techniques, challenges can arise. Here’s how to overcome some common issues:
1) Porosity
Cause: Contamination from oil, moisture, or insufficient shielding gas.
Solution: Clean the metal thoroughly and ensure proper gas flow.
2) Lack of Penetration
3) Excessive Spatter
Cause: High voltage or incorrect shielding gas mix.
Solution: Lower the voltage, reduce the arc length, or switch to a cleaner shielding gas mix.
4) Warping and Distortion
Cause: Excessive heat input or improper technique.
Solution: Use stitch welding or multiple small passes, allowing the material to cool between passes.
VII. Choosing the Right Pulsed MIG Welding Machine
Selecting the right equipment is crucial for achieving high-quality welds. Here are some factors to consider when purchasing a Pulsed MIG welding machine:
1) Pulse Functionality:
Look for a machine with adjustable pulse parameters, including frequency and peak/background current, to customize settings for different materials.
2) Power and Portability:
Consider the power output and duty cycle to ensure the machine can handle your project's material thickness and complexity. Portability is also important for workshops or job sites that require mobility.
3) Brand and Support:
Invest in a reputable brand like Megmeet Welding Technology, which is known for producing high-quality, reliable Pulsed MIG welding machines. Good customer support and after-sales service are also essential for long-term satisfaction.
VIII. FAQs About Pulsed MIG Welding for Aluminum
Q1: What is the best shielding gas for Pulsed MIG welding aluminum?
Q2: Can Pulsed MIG welding be used for thick aluminum?
Q3: How do I prevent burn-through when welding thin aluminum?
Q4: What wire is best for welding aluminum?
Q5: How do I minimize spatter in Pulsed MIG welding?
Conclusion
Pulsed MIG welding is a powerful tool for anyone working with aluminum. Its precision, control, and efficiency make it an essential technique for achieving high-quality welds. Whether you're involved in automotive repairs, aerospace manufacturing, or artistic metalwork, mastering Pulsed MIG welding can elevate your projects to new heights. By understanding the benefits, techniques, and best practices outlined in this guide, you can harness the full potential of Pulsed MIG welding and create stunning, durable aluminum fabrications.
