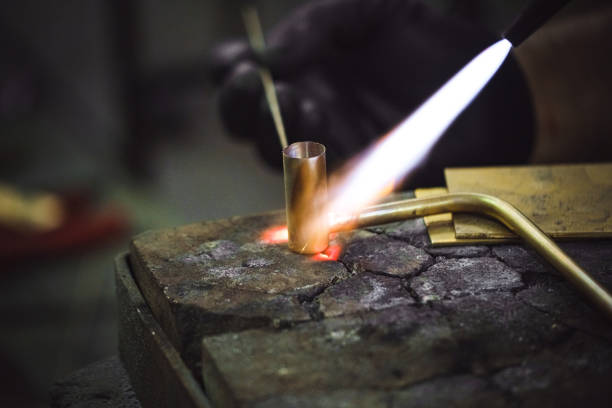

Copper pipe welding is a crucial skill in plumbing, HVAC, and refrigeration applications. While offering superior durability and corrosion resistance compared to other materials, copper presents unique challenges during the welding process. A poorly executed weld can lead to leaks, system failures, and costly repairs. In this article, Megmeet-welding will delve into nine frequently encountered problems in copper pipe welding, providing detailed explanations, practical solutions, and preventative measures to help you achieve flawless welds every time.
One of the most common issues is insufficient heat, resulting in a "cold weld." A cold weld appears dull, lacks proper fusion between the pipe and fitting, and is significantly weaker than a properly executed weld. The copper doesn't reach its melting point, leading to a weak, porous, and unreliable joint. This often manifests as a leak later under pressure.
Low gas pressure: Insufficient gas pressure reduces the flame's intensity, hindering adequate heat transfer.
Incorrect flame adjustment: A poorly adjusted flame (too small or uneven) won't provide the necessary heat.
Improper torch angle: Holding the torch at the wrong angle reduces heat concentration on the joint.
Welding too quickly: Rushing the process prevents sufficient heat penetration.
Thick pipe sections: Thicker pipes require more heat and potentially preheating.
Check gas pressure and adjust accordingly: Ensure adequate gas pressure for the torch and pipe size.
Proper flame adjustment: Achieve a stable, concentrated flame with the correct size for the joint.
Maintain correct torch angle: Hold the torch at the optimal angle for even heat distribution.
Slower, controlled welding speed: Allow sufficient time for the copper to melt and fuse properly.
Preheating for thicker pipes: Consider preheating thick pipes to improve heat distribution and reduce cold welds.
Use a larger tip if necessary: For larger diameter pipes, you may need a larger torch tip to deliver more heat.
Overheating is the opposite extreme and equally problematic. Excessive heat input leads to oxidation, burning, and the formation of brittle, structurally weak welds. The weld might appear discolored, darkened, or even show signs of scorching. Overheating also increases splatter, making the weld aesthetically unappealing and potentially weaker.
High gas pressure: Excessive gas pressure produces an overly intense flame.
Incorrect flame adjustment: A flame that's too large or too close to the joint can cause overheating.
Welding too slowly: Prolonged heat exposure leads to overheating.
Improper filler rod technique: Excessive filler rod can lead to overheating of the weld pool.
Reduce gas pressure: Lower the gas pressure to reduce flame intensity.
Proper flame adjustment: Use a smaller, more controlled flame.
Faster, controlled welding speed: Maintain a quicker, but still controlled, welding speed to minimize heat buildup.
Maintain proper distance from the joint: Keep the torch at the recommended distance from the weld.
Appropriate filler rod technique: Avoid excessive filler rod application. Use smaller increments and allow the weld pool to melt properly before adding more.
Flux is crucial; it prevents oxidation and ensures proper flow of the molten copper. Insufficient or improperly applied flux exposes the copper to oxidation, resulting in weak, porous, and brittle welds prone to leaks and corrosion. Excessive flux, on the other hand, can leave slag inclusions in the weld, weakening it.
Insufficient flux: Not enough flux leaves the copper exposed to oxidation.
Uneven flux application: Uneven distribution results in some areas being unprotected.
Incorrect flux type: Using the wrong type of flux for the copper alloy can negatively impact the weld.
Proper flux application: Apply a generous, even layer of flux to the entire joint area.
Use the correct flux: Ensure the flux is compatible with the type of copper pipe being welded.
Clean excess flux after welding: Remove all residual flux to prevent corrosion and weakening.
The filler rod adds material to the weld, creating a strong, continuous joint. Incorrect application—feeding it too quickly, inconsistently, or at the wrong angle—can result in porosity, incomplete fusion, and lack of penetration.
Inconsistent filler rod feed: Erratic feeding results in an uneven weld bead.
Incorrect filler rod angle: The filler rod should be at the correct angle to the weld pool for proper penetration.
Using the wrong size filler rod: The diameter of the filler rod should match the pipe size and wall thickness.
Using the wrong size filler rod: The diameter of the filler rod should match the pipe size and wall thickness.
Maintain correct filler rod angle: Angle the rod correctly into the molten weld pool.
Use the correct filler rod diameter: Choose a filler rod size appropriate for the application.
Exposure to air at high temperatures causes copper to oxidize, forming brittle copper oxides. These oxides weaken the weld, reducing its strength and increasing its susceptibility to cracking and leaks. Oxidation is evident as a dark, discolored area around the weld.
Prolonged exposure to air at high temperatures: The longer the molten copper is exposed to air, the more it oxidizes.
Insufficient flux: Lack of flux leaves the copper vulnerable to oxidation.
Quick welding: Minimize the weld's exposure to air at high temperatures.
Proper flux application: Ensure adequate flux coverage to prevent oxidation.
Clean work area: Keep the area clean to prevent contaminants from interfering with the weld.
Porosity refers to tiny holes or voids within the weld. These weaken the joint significantly, making it prone to leaks under pressure. Porosity arises from various factors, including insufficient heat, improper flux, and contamination.
Insufficient heat: Incomplete melting leaves voids in the weld.
Improper flux: Inadequate flux protection allows oxidation, creating voids.
Contamination: Foreign materials in the weld pool create gas bubbles that form pores.
Address the root cause: Identify and correct the underlying cause, whether it's heat, flux, or contamination.
Re-weld: If porosity is present, the weld must be removed and re-welded correctly.
Lack of penetration means the weld doesn't fully fuse the pipe and fitting. This leaves gaps or incomplete bonding, resulting in a weak, unreliable joint. This is often visually identifiable as an area where the weld metal hasn't fully joined the base materials.
Insufficient heat: Insufficient heat prevents the copper from melting and flowing properly.
Incorrect filler rod technique: Improper filler rod application prevents proper penetration.
Joint misalignment: Poor alignment prevents proper fusion between the pipe and fitting.
Increase heat input: Adjust the flame size and speed to ensure adequate heat.
Correct filler rod technique: Use a proper technique to ensure complete penetration.
Ensure proper joint alignment: Precisely align the pipe and fitting before welding.
Improper alignment before welding is a frequent cause of weak welds. Misalignment prevents complete fusion, leaving areas of weakness and increasing the risk of leaks.
Improper clamping: Inadequate clamping leads to movement and misalignment during welding.
Poor preparation: Failure to properly align the pipe and fitting before starting.
Use proper clamping: Securely clamp the pipe and fitting to ensure perfect alignment.
Visual inspection before welding: Carefully check alignment before beginning the welding process.
Contaminants such as oil, grease, dirt, or other substances on the pipe and fitting surfaces dramatically reduce weld quality. These contaminants prevent proper wetting and fusion of the copper, weakening the joint.
Dirty pipes and fittings: Failure to properly clean the surfaces before welding.
Improper handling: Contamination during handling or storage.
Thorough cleaning: Clean all surfaces with a suitable solvent before welding.
Careful handling: Protect the pipes and fittings from contamination during handling and storage.
Mastering copper pipe welding requires practice, attention to detail, and a thorough understanding of the potential problems. By addressing these nine common issues proactively, you can significantly improve your welding success rate and ensure the durability and reliability of your copper pipe systems. Remember to always prioritize safety and use appropriate personal protective equipment.
