Info & Hazard Notes for HF Start on TIG Power Sources

Welding is an art and science, blending precision with power. Tungsten Inert Gas (TIG) welding is a prominent technique, particularly favored for its ability to produce clean, high-quality welds. One of the critical components in TIG welding is the High-Frequency (HF) start. The HF start is essential in initiating the welding arc without the need for direct contact between the tungsten electrode and the workpiece, reducing contamination and wear. However, with its benefits come certain hazards and important information that every welder should know.

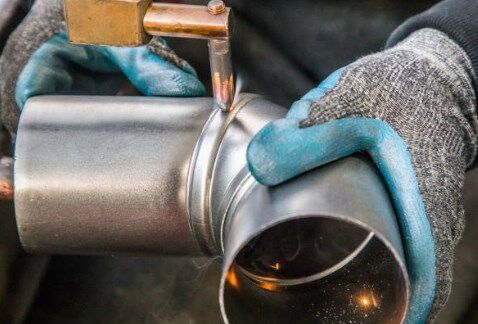

High-frequency Tig Welding


I. About TIG Welding and HF Start


1) What is TIG Welding?


TIG welding, also known as Gas Tungsten Arc Welding (GTAW), uses a non-consumable tungsten electrode to produce the weld. The weld area is protected from atmospheric contamination by an inert shielding gas, usually argon or helium. TIG welding is renowned for its precision and control, making it ideal for welding thin materials and achieving clean, high-quality welds.


2) The Role of HF Start in TIG Welding:


The HF start is a method used to initiate the welding arc in TIG welding. It employs high-frequency, high-voltage electrical pulses to ionize the air gap between the electrode and the workpiece. This process creates a conductive path for the welding current, allowing the arc to start without the electrode touching the workpiece. The benefits of HF start include reduced tungsten contamination, longer electrode life, and smoother arc initiation.


II. Key Information About HF Start on TIG Power Sources


1) How does HF Start Work?


HF start involves generating a high-frequency current, typically in the range of 1-2 MHz, which is superimposed on the main welding current. When the welder activates the torch, the high-frequency pulses ionize the gas between the tungsten electrode and the workpiece, creating a conductive plasma path. This ionization allows the main welding current to flow and establish the arc without direct contact.


2) Advantages of HF Start


  • Non-contact Arc Initiation: This feature minimizes tungsten contamination and electrode wear, resulting in cleaner welds and extended electrode life.

  • Improved Weld Quality: By avoiding direct contact, HF-start reduces the risk of introducing impurities into the weld pool, ensuring high-quality, defect-free welds.

  • Consistency and Control: HF start provides consistent arc initiation, crucial for precision welding applications where control and repeatability are essential.

  • Versatility: HF start is effective across various materials and thicknesses, making it versatile for different welding applications.


3) Components Involved in HF Start


The HF start system consists of several components integrated into the TIG power source:


  • High-Frequency Generator: This unit produces the high-frequency pulses required for arc initiation. It includes a transformer, capacitors, and other circuitry to generate and control the pulses.

  • High-Voltage Cable: The cable connects the high-frequency generator to the welding torch, transmitting the high-frequency pulses.

  • Torch: The welding torch holds the tungsten electrode and directs the shielding gas. It must be properly insulated to handle the high-frequency pulses.

  • Work Clamp: The work clamp completes the electrical circuit by connecting the workpiece to the power source.


4) HF Start Settings and Adjustments


Proper settings and adjustments are crucial for optimizing the HF start function. Key parameters include:


  • HF Intensity: This setting controls the strength of the high-frequency pulses. Higher intensity ensures reliable arc initiation but may increase electrical interference.

  • HF Duration: This setting determines how long the high-frequency pulses are applied during arc initiation. Proper duration ensures consistent starts without excessive wear on the components.

  • Electrode Preparation: The tungsten electrode must be properly prepared with a clean, sharp tip to facilitate effective arc initiation.


III. Hazard Notes for HF Start on TIG Power Sources


1) Electrical Hazards


  1. High Voltage Exposure: HF start systems generate high-voltage pulses that pose a significant electrical shock risk. Welders must ensure proper insulation of the torch and cables to prevent accidental contact.

  2. Arc Flash: The intense light and heat from the welding arc can cause severe eye injuries (arc eye) and skin burns. Welders should always wear appropriate personal protective equipment (PPE), including welding helmets with suitable lens shades and protective clothing.

  3. Interference with Electronic Devices: The high-frequency pulses can interfere with electronic devices, including pacemakers and communication equipment. Welders should be aware of this risk and take necessary precautions.


2) Electromagnetic Interference (EMI)


HF start systems can generate electromagnetic interference that affects nearby electronic devices. Key considerations include:


  1. Shielding and Grounding: Proper shielding and grounding of the welding equipment can mitigate EMI. Ensuring that all components are properly connected and insulated is crucial.

  2. Distance from Sensitive Equipment: Maintain a safe distance between the welding area and sensitive electronic equipment to minimize interference risks.

  3. Compliance with Regulations: Adhere to local and international regulations regarding EMI to ensure safe and compliant welding practices.


3) Health and Safety Precautions


  1. Proper Ventilation: Welding produces fumes and gases that can be harmful if inhaled. Ensure adequate ventilation in the welding area to dissipate these emissions.

  2. Regular Maintenance: Regularly inspect and maintain the welding equipment, including HF start components, to ensure they are in good working condition. Faulty equipment can pose significant safety risks.

  3. Training and Awareness: Ensure that welders are adequately trained in the safe use of HF start systems and are aware of the associated hazards. Regular safety briefings and training sessions can help reinforce safe practices.


IV. Practical Tips for Safe and Effective Use of HF Start


1) Equipment Setup and Inspection


  1. Thorough Inspection: Before starting any welding project, conduct a thorough inspection of all equipment, focusing on the high-frequency generator, cables, and torch. Look for signs of wear, damage, or improper insulation.

  2. Proper Grounding: Ensure that the work clamp is securely attached to the workpiece and that the grounding system is effective. Poor grounding can result in inconsistent arc starts and increased safety risks.

  3. Cable Management: Arrange cables to prevent tripping hazards and reduce the risk of damage. Avoid running cables near sharp edges or moving machinery.


2) Optimal Settings for Different Materials


  1. Steel and Stainless Steel: For these materials, a moderate HF intensity and duration setting usually suffices. Ensure a sharp tungsten tip to achieve precise arc starts.

  2. Aluminum: Aluminum requires a higher HF intensity due to its high thermal conductivity. Proper electrode preparation is essential to prevent contamination and ensure clean starts.

  3. Thin Materials: Lower HF intensity and shorter duration are often sufficient for thin materials, reducing the risk of burn-through and warping.


3) Troubleshooting Common Issues


  1. Inconsistent Arc Starts: Check the HF intensity and duration settings, inspect the tungsten electrode for contamination, and ensure proper grounding. Adjust settings as necessary.

  2. Interference with Electronics: Ensure proper shielding and grounding of the welding setup. If interference persists, consider relocating the welding station or using additional shielding materials.

  3. Equipment Wear: Regularly inspect and replace worn components, such as cables and torch parts, to maintain optimal performance and safety.


V. Conclusion


TIG welding with HF start offers unparalleled precision and quality, making it a preferred method for many welding applications. However, understanding the intricacies of HF start systems and the associated hazards is crucial for safe and effective welding. By adhering to proper setup, maintenance, and safety practices, welders can harness the full potential of HF start while minimizing risks. Continuous training and awareness are essential in promoting a safe welding environment. As technology advances, staying informed about the latest developments and best practices will ensure that TIG welding remains a valuable and safe technique in the welding industry.
