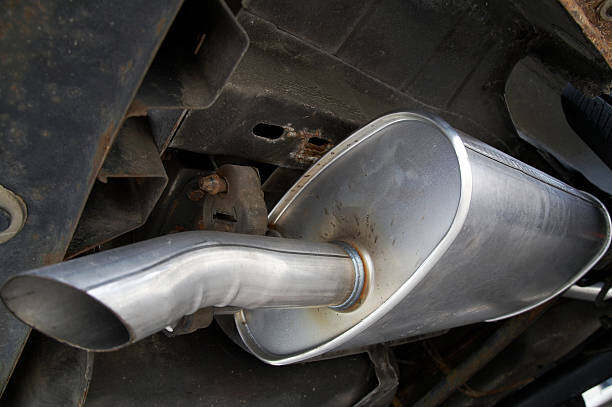

MIG welding is a popular technique for fabricating and repairing exhaust systems due to its ease of use, speed, and versatility. However, mastering MIG welding for exhaust pipes is not an easy job for most welders. To maximize efficiency, we researched and came up with tips for MIG welding exhaust pipes, from choosing the right equipment to perfecting your technique.
I. Why MIG Welding for Exhaust Pipes?
MIG welding, or Metal Inert Gas welding, is ideal for exhaust systems because it allows for precise control and produces clean welds with minimal slag. This process involves feeding a consumable wire electrode through a welding gun while a shielding gas protects the weld pool from contaminants. The result is a strong, clean weld that can handle the high temperatures and stresses typical of exhaust systems.
II. Choosing the Right MIG Welder for Exhaust Pipes
The first thing you should do to mig welding perfect for exhaust tubes is choose a nice mig welding machine. When selecting a MIG welding machine for exhaust pipe fabrication, consider the following factors:
Amperage Range: Exhaust pipes are typically made from thin-walled materials, so you'll need a welder that can operate at low amperages to prevent burning through the metal. A machine with a range of 30 to 140 amps is usually sufficient.
Voltage Control: Look for a welder with adjustable voltage settings, as this allows you to fine-tune the heat and penetration of the weld. This is crucial when working with thin materials.
Wire Feed Speed: A welder with an adjustable wire feed speed lets you control the rate at which the wire is fed into the weld pool, which is essential for achieving a consistent weld bead.
Portability: Since exhaust repairs and fabrications often require working under a vehicle, a lightweight and portable welder is beneficial.
If you are not sure which mig welding machine brand to buy, you can take consideration from the advice: Top 10 GMAW Welding Machine Brands in the World (in 2023).
III. Setting Up Your MIG Welder for Exhaust Pipes
Proper setup is critical for achieving quality welds. Here are key settings and considerations:
1. Wire Type and Size:
For exhaust pipe welding, the most commonly used wire is ER70S-6, which is suitable for mild steel. The wire diameter plays a crucial role in the welding process:
0.023" (0.6mm): Ideal for thin materials (like exhaust tubing) as it reduces the risk of burning through the metal.
0.030" (0.8mm): Suitable for slightly thicker materials and provides a good balance between penetration and control.
2. Shielding Gas:
The type of shielding gas used can significantly impact the weld quality. For exhaust systems, a common mix is 75% Argon and 25% CO2 (also known as C25). This mixture provides a smooth arc and minimal spatter, which is ideal for thin metals.
3. Voltage and Amperage Settings:
While specific settings can vary based on the welder and materials, a good starting point for exhaust pipes is:
Voltage: Set to around 15-18 volts.
Amperage: Adjust according to the material thickness; typically, 40-60 amps for thin exhaust tubing.
Always consult your welder’s manual for recommended settings and make adjustments based on test welds.
4. Adjusting the Wire Feed Speed:
The wire feed speed controls how quickly the wire is fed into the weld pool. This setting needs to be in harmony with the voltage and amperage to ensure a consistent weld bead.
For thin exhaust tubing, a wire feed speed of around 200-300 inches per minute (IPM) is a good starting point. Fine-tune this setting based on your specific welder and the results of your test welds.
5. Setting Up the Welding Gun:
Contact Tip: Ensure the contact tip size matches your wire diameter. For 0.023" wire, use a corresponding 0.023" tip. The same goes for 0.030" wire.
Nozzle and Gas Flow: Use a nozzle that provides adequate gas coverage. The gas flow rate should be set to around 20-25 cubic feet per hour (CFH) for most exhaust welding applications. Proper gas coverage is crucial to prevent contamination and porosity in the weld.
6. Preparing the Work Area:
A clean work area ensures better weld quality and safety:
Surface Preparation: Clean the exhaust pipes thoroughly to remove rust, paint, and contaminants. Use a wire brush or grinder to achieve a clean, shiny surface. Proper preparation prevents contamination and ensures a strong weld.
Fit-Up and Clamping: Properly fit and clamp the exhaust pieces to ensure they are securely held in place. Tack welds can be used to hold the sections together temporarily before final welding.
IV. Step-by-Step Setup Process
Install the Wire Spool: Place the wire spool on the welder and thread the wire through the drive rolls and into the welding gun. Ensure the wire is feeding smoothly without any kinks.
Set the Wire Feed Tension: Adjust the tension on the drive rolls to ensure a smooth wire feed without slipping. Too much tension can deform the wire, while too little can cause inconsistent feeding.
Attach the Ground Clamp: Secure the ground clamp to a clean, bare metal surface on the workpiece. This ensures a solid electrical connection, which is crucial for stable arc performance.
Select the Correct Polarity: For MIG welding with solid wire and shielding gas, set the machine to DCEP (Direct Current Electrode Positive).
Adjust the Shielding Gas Flow: Open the gas cylinder and set the flow rate to 20-25 CFH. Listen for gas flow when you pull the trigger to ensure proper gas coverage.
Test Your Settings: Perform a few test welds on scrap pieces of exhaust tubing to fine-tune your settings. Adjust the voltage, amperage, and wire feed speed as necessary to achieve a consistent, clean weld bead.
V. Fine-Tuning Your MIG Welder Settings
Achieving the perfect weld requires some trial and error. Here are a few tips for fine-tuning your settings:
Monitor the Weld Bead: A good weld bead should be smooth and slightly convex. If it is too flat or concave, increase the voltage or reduce the travel speed.
Listen to the Arc: A steady, buzzing sound indicates a good arc. Popping or sputtering sounds suggest issues with the settings or gas coverage.
Check for Spatter: Excessive spatter can indicate incorrect voltage or wire feed speed. Adjust these settings until the spatter is minimized.
VI. Conclusion
Setting up your MIG welder for exhaust pipe welding involves selecting the right wire, adjusting voltage and amperage, and ensuring proper gas coverage. With the right setup, you can achieve clean, strong welds that are essential for the durability and performance of exhaust systems. Always remember to perform test welds and make necessary adjustments to fine-tune your settings for the best results.
