TIG welding is a high-quality and efficient welding method. What are its principles and methods? In which fields and situations can it be applied? This article will provide a detailed introduction to the definition, characteristics, advantages, principles, methods, and applications of TIG welding, along with Megmeet Welding Technology's technical advantages and product features in the field of TIG welding.
I. What is TIG Welding?
TIG welding, short for Tungsten Inert Gas Welding, is also known as Argon Arc Welding. It is a welding method that uses a non-consumable tungsten electrode to produce an arc under the protection of an inert gas, heating and melting the workpiece. TIG welding has the following characteristics:
High Welding Quality: The inert gas effectively protects the arc and the molten pool, preventing oxidation and impurities, thus producing high-quality, defect-free welds.
High Welding Efficiency: With a stable arc, high thermal efficiency, deep penetration, and minimal deformation, TIG welding can achieve high-speed, continuous welding.
High Flexibility: Since the tungsten electrode does not melt, it allows for the option of adding filler metal as needed, making TIG welding adaptable to different thicknesses, positions, and forms of welding.
II. Applications of TIG Welding in Industry and Daily Life
Due to the advantages mentioned above, TIG welding is widely used in both industry and daily life. It can be used in the following areas:
Welding various Metal Materials: Suitable for welding carbon steel, stainless steel, aluminum alloys, nickel alloys, copper alloys, titanium alloys, and more.
Welding various Workpiece Thicknesses: Can achieve high-quality welding for thicknesses ranging from 0.1 mm to over 10 mm.
Welding various Positions: Can weld in various positions including flat, vertical, horizontal, and angled.
Welding various Industries: Aerospace, nuclear energy, automotive manufacturing, shipbuilding, chemical industry, medical equipment, and more.
III. What is the Principle of TIG Welding?
To understand the principle of TIG welding, one must first understand the formation process of the arc. An arc is a conductive gas channel where high-temperature and high-energy electrical discharge occurs between two electrodes. The conditions required for arc formation are:
Adequate Voltage Difference: The arc voltage between two electrodes.
Adequate Conductive Medium: The arc medium.
Adequate Current: The arc current.

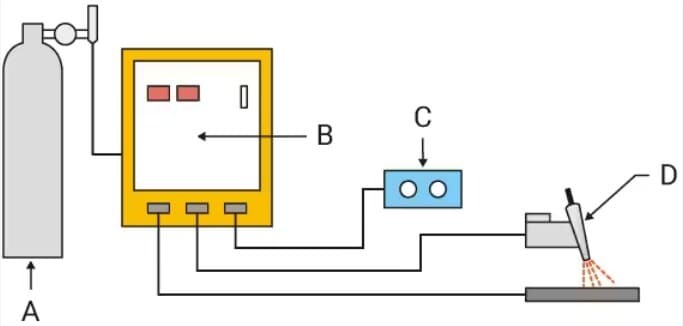

In TIG welding, the tungsten electrode and the workpiece act as the positive and negative electrodes, respectively, with inert gas serving as the arc medium, and the welding power supply providing the necessary voltage and current. The arc formation process in TIG welding involves:
Thermionic Emission: When the tungsten electrode approaches the workpiece, the sharp tip of the tungsten electrode causes the emission of thermal electrons from its surface.
Electron Flow: These electrons move towards the workpiece, forming a cathode ray.
Ionization: The cathode ray collides with the inert gas molecules, ionizing them into positive ions and free electrons.
Conductive Path: This creates a conductive gas, establishing a conductive channel between the tungsten electrode and the workpiece.
Arc Establishment: Once the channel is established, the welding power supply delivers a significant welding current through it, producing a high-temperature, high-energy welding arc.
IV. What Are the Methods of TIG Welding?
TIG welding methods primarily include:
Manual Welding: The operator manually holds the tungsten electrode torch and filler metal wire to weld. This method is simple, flexible, and adaptable but requires high skill levels, is less efficient, and can result in inconsistent quality. It is suitable for small batches, diverse shapes, and complex workpieces.
Semi-Automatic Welding: A mechanical device controls the movement of the tungsten electrode torch or the workpiece, with the operator managing the process. It simplifies operation, improves efficiency, and ensures stable quality but has higher equipment costs and less adaptability. It is suitable for medium to large batches, uniform shapes, and regular workpieces.
Automatic Welding: Controlled by mechanical devices or computer programs, automatic welding adjusts all parameters automatically. It offers the highest efficiency and quality but requires substantial investment and complex maintenance. It is ideal for large-scale production, standard products, and simple shapes.
V. Operating Procedures and Considerations for TIG Welding
Key points to consider in TIG welding operation include:
Choosing the Right Tungsten Electrode: Crucial for arc formation and stability, affecting welding quality and efficiency. The choice depends on factors like welding current, polarity, and material type. Pure tungsten electrodes are generally used for AC welding, while tungsten doped with oxides (like cerium oxide, lanthanum oxide, and zirconium oxide) is used for DC welding.
Selecting the Appropriate Shielding Gas: It protects the arc and molten pool from contaminants and affects arc characteristics and heat input. Argon is the most common shielding gas due to its arc stability, low heat input, and cost-effectiveness. Other gases like nitrogen and helium may be used for specific materials like stainless steel and aluminum alloys, respectively, offering benefits like increased penetration but at a higher cost.
Choosing the Proper Filler Metal: Optional in TIG welding, filler metal enhances the strength and toughness of the weld. The choice should match or closely resemble the base material to ensure consistent chemical composition and mechanical properties. Without filler metal, a proper gap and alignment of base materials are crucial for sufficient fusion.
Using the Correct Welding Power Source: The power source should match the material type, thickness, and position. AC is typically used for materials like aluminum that form an oxide layer, while DC is used for materials like carbon steel and stainless steel for a stable arc and efficient operation.
Weld according to the correct operating methods.: TIG welding requires the operator to master the correct techniques, including the grip, angle, and distance of the tungsten torch and filler wire; the cleanliness and shape of the workpiece surface and the tungsten tip; the method and timing of arc initiation and termination; and the relative speed and direction of movement between the tungsten torch, filler wire, and workpiece. These techniques significantly affect the quality and efficiency of TIG welding, so the operator needs to adjust and control them based on different welding conditions and requirements.
VI. What Are the Advantages and Limitations of TIG Welding?
As a high-quality and highly efficient welding method, Tig welding has the following advantages:
TIG welding can achieve high-quality welds for various metal materials, whether they are common materials like carbon steel, stainless steel, and aluminum alloys, or special materials like nickel alloys and titanium alloys. It can produce defect-free, porosity-free, and crack-free welds.
It is capable of efficiently welding workpieces of various thicknesses, from thin sheets as thin as 0.1mm to thick plates over 10mm, allowing for high-speed, continuous, one-pass welding.
TIG welding provides high flexibility in welding different positions of workpieces. Whether welding in standard positions like flat, vertical, horizontal, and overhead, or in special positions like upward, downward, and horizontal, it can be done freely, conveniently, and accurately.
As a high-quality and highly efficient welding method, Tig welding has the following limitations:
High levels of operational skills and equipment conditions are required. Operators need to master complex operational methods and techniques, and the equipment must have stable and reliable performance and functionality.
Significant investment and maintenance costs are needed. Consumables such as tungsten electrodes, shielding gas, and filler metals need regular replacement and replenishment, and the equipment requires periodic inspection and maintenance.
High levels of safety protection and environmental measures are necessary. The ultraviolet light and strong radiation produced by the arc can cause harm to the human body, and the shielding gas and fumes generated by the arc can cause environmental pollution.
VII. Future Trends and Prospects of TIG Welding
As an advanced welding method, TIG welding has broad potential for development and application. With the progress of technology and societal advancement, TIG welding is expected to undergo several improvements and innovations:
Enhancing the Level of Automation: By utilizing computer technology and artificial intelligence, TIG welding can achieve automatic optimization and adjustment of welding parameters, automatic monitoring and control of the welding process, and automatic evaluation and feedback on welding quality.
Increasing Multifunctionality: New power supply technologies and arc techniques can diversify and control the shapes and characteristics of TIG welding arcs, such as pulse arcs, modified arcs, and composite arcs.
Improving Environmental Friendliness: By leveraging new material technologies and process techniques, TIG welding can achieve the conservation and recycling of consumables, as well as the reduction and treatment of emissions and waste generated during the welding process.
八、VIII. Features of Megmeet Welding TIG Products
As a company specializing in the research, development, production, sales, and service of industrial gas-shielded welding machines, Megmeet Welding is dedicated to providing customers with the highest quality, most advanced, and most suitable TIG welding solutions. Megmeet Welding has many years of experience and technical expertise in TIG welding, holding multiple patents and distinctive product features in this field. The company also offers a comprehensive after-sales service system for TIG welding. Regardless of the industry you work in, the materials you need to weld, or your specific welding requirements, Megmeet Welding can provide you with the best TIG welding solutions. The TIG welding products offered by Megmeet Welding include the following series:
Features multiple functions such as pulse DC TIG, high-speed TIG spot welding, and manual arc welding, enabling precise, high-speed, and efficient welding.
Utilizes fully digital intelligent control for more efficient and faster welding parameter settings, and includes VRD anti-electrical shock function and arc thrust adjustment function.
Equipped with a variety of welding communication interfaces, allowing quick connection to robots of different brands and intelligent tooling, facilitating automated or intelligent welding.
Comes with USB and IoT interfaces, making it easy to upgrade welding processes and connect to management platforms for efficient welding management.

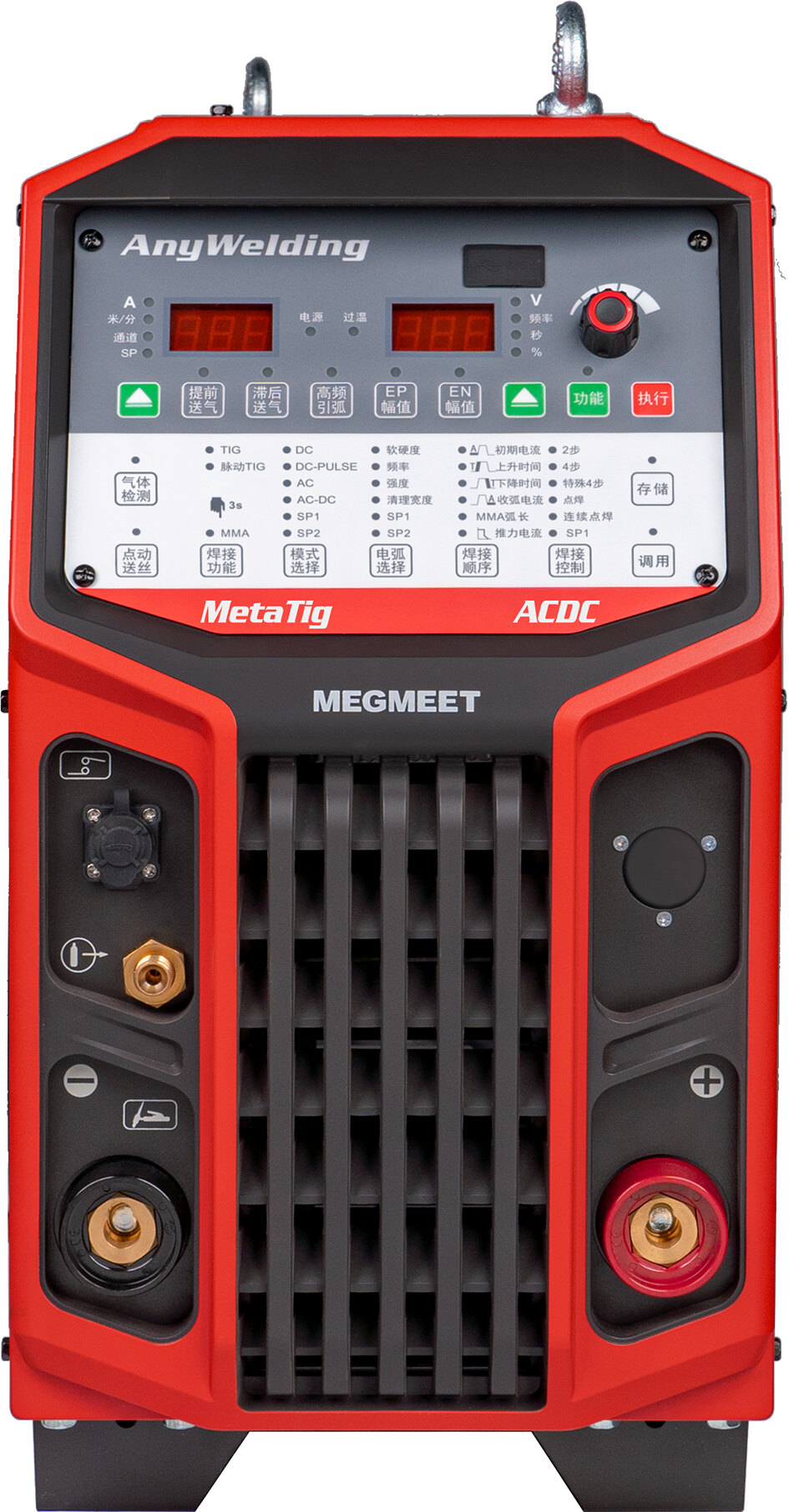

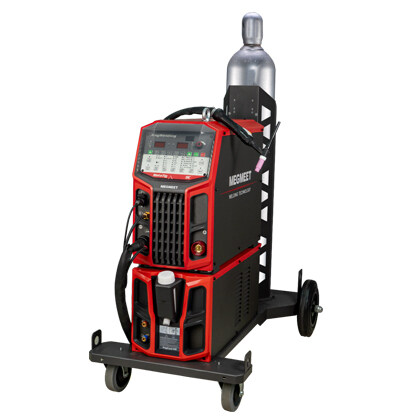

2）MetaTIG ACDC Series Digital IGBT inverter multifunctional AC/DC TIG welding machines: suitable for welding a variety of metal materials, including carbon steel, 9% nickel steel, stainless steel, alloy steel, copper, titanium, magnesium, aluminum, and aluminum alloys. It is particularly effective for welding dissimilar metals. This series has the following advantages:
