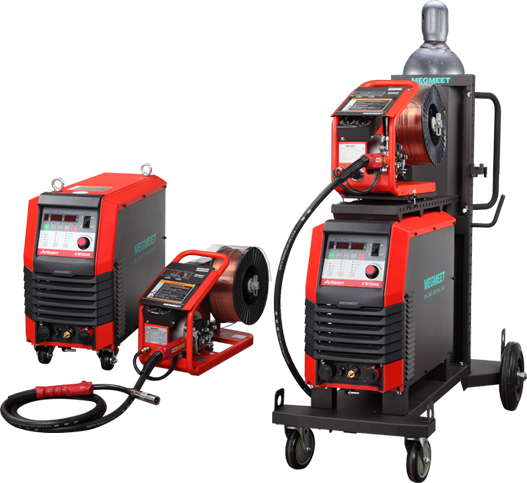

Artsen2 CM500C Full-Digital Carrier-wave CO₂/MAG Welding Machine

Designed for super-long distance welding applications such as shipbuilding, offshore engineering, and steel structures, etc.

According to statistics, more than 70% of welding machine shutdowns are caused by the weak control cable breaking on-site. The unique two-way digital PSK high-speed carrier-wave technology of Megmeet saves control cable and greatly improves overall reliability.

Carrier-wave technology reduces the weight and volume of interconnection cable by 30%;

Adjustable carrier communication frequency and strong anti-interference ability can achieve 100 meters of remote stable welding;

Multiple welding processes are combined into one machine, supporting CO2/MAG/MMA/carbon arc gouging and other welding processes;

Most functions of the main machine front panel are available on the wire feeder, which supports remote adjustment for common functions;

With current and voltage limiting function, upper/lower limits of welding current and voltage can be set to prevent operating outside WPS parameters;

Multiple protection functions including input over/under voltage, input phase loss, primary/secondary overheating, output over-current, carrier cable short circuit, etc.;

Up to 99 sets of welding parameters JOB channels, one-key call, easy operation;

Lightning protection level reaches Class D, a wide input voltage range is more suitable for harsh power grids, and can be upgraded to work with diesel engines;

100%@500A duty cycle, using a patented technology cooling solution, IGBT thermal conductivity efficiency increased by 50%;

RFID card binding function and reserved IOT interface, able to work with SMARC IOT welding management system;

USB upgrade function can help users to easily obtain the latest welding technology of Megmeet;

Compatible with the first-generation Artsen CM500C, the main machine and wire feeder are interchangeable;

Meet the China national first-level energy efficiency standard and greatly reduce electricity costs.

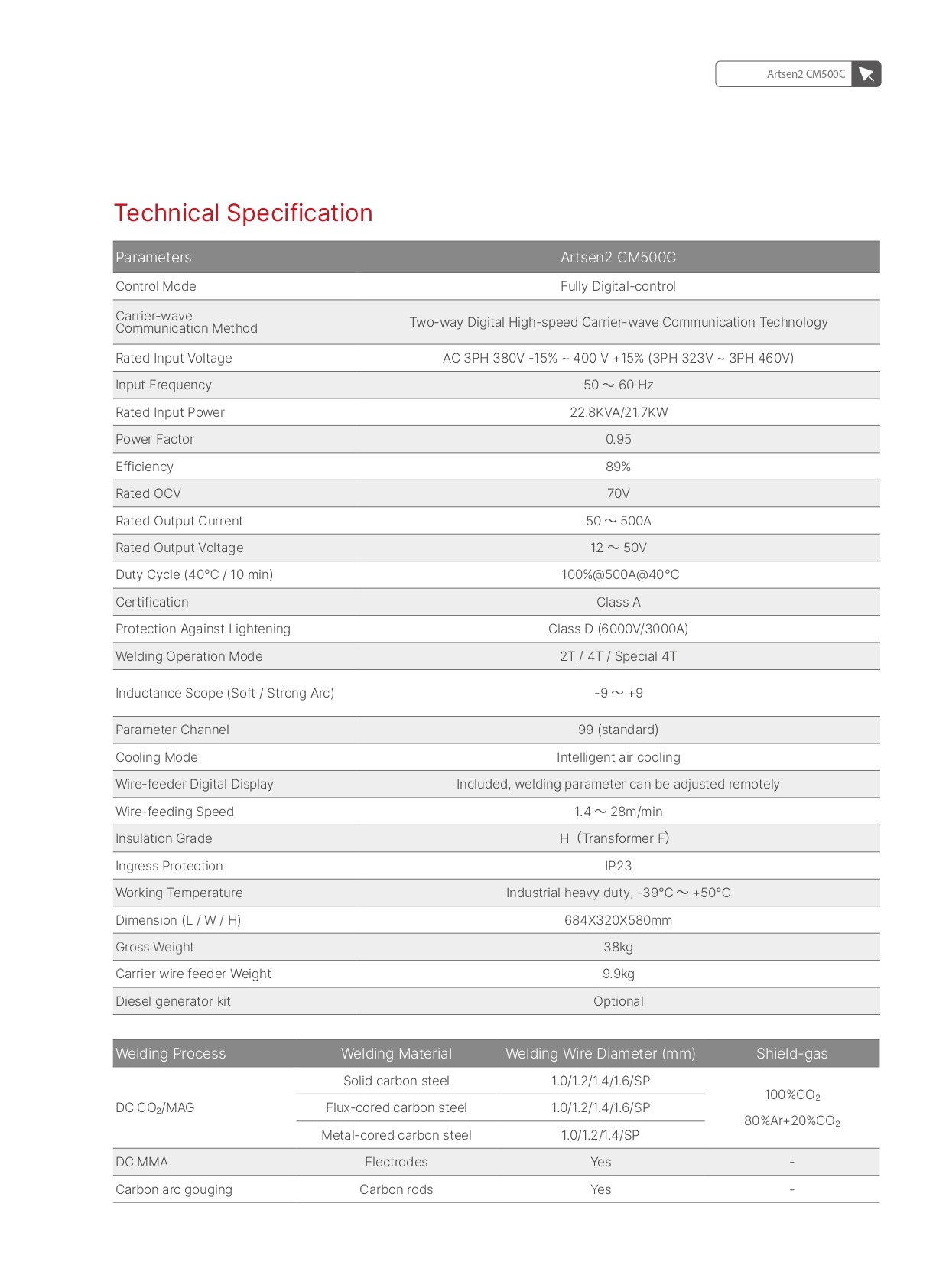

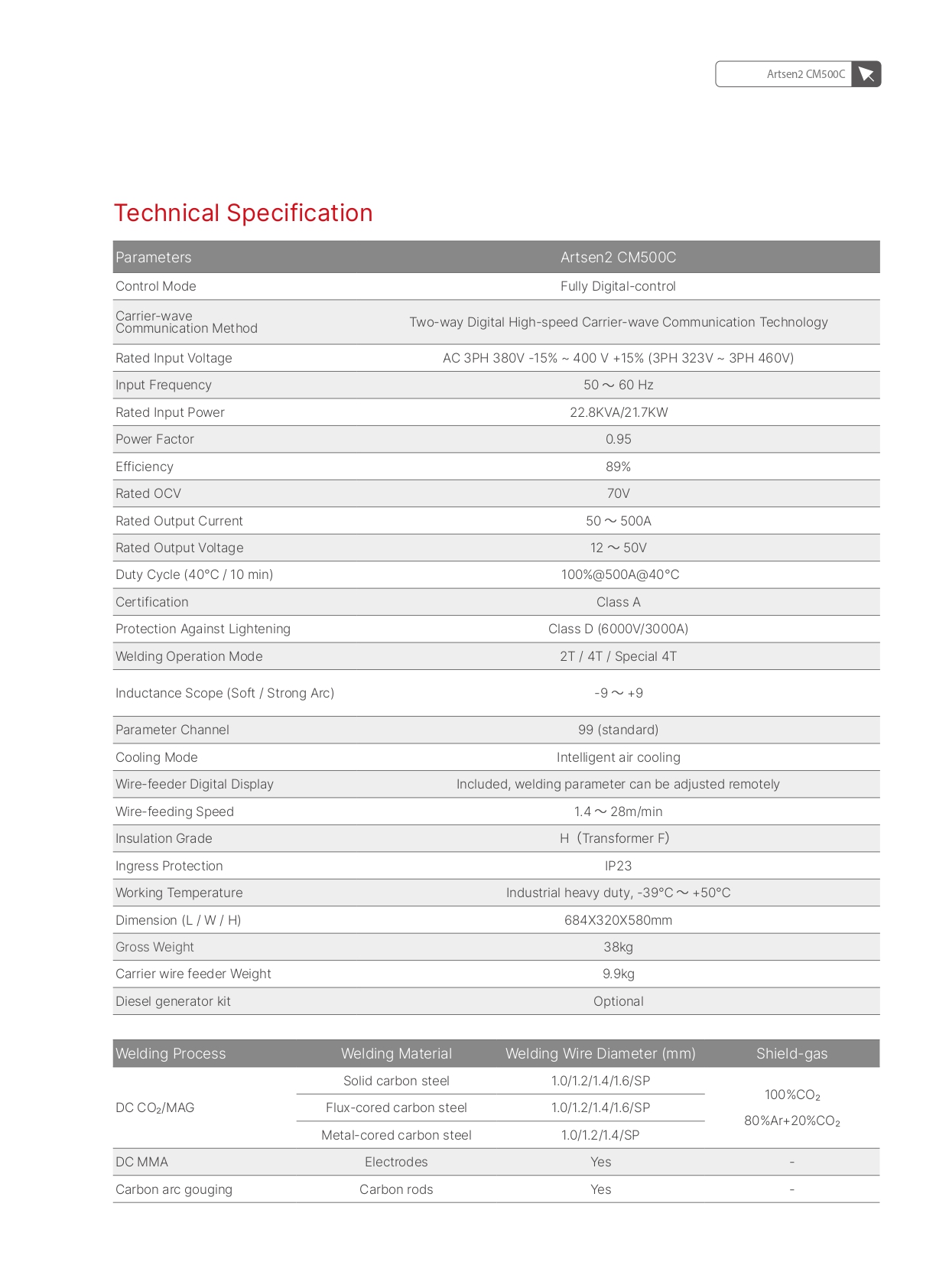

Specification User Manual

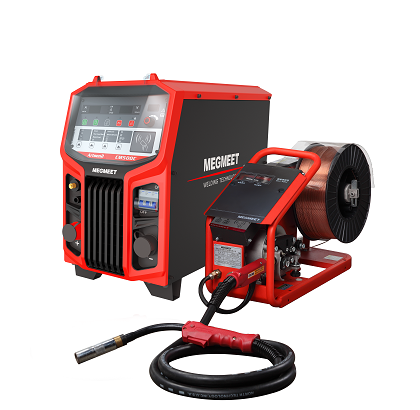

Megmeet Artsen2 CM500C Series Shipyard Carrier MIG/MAG Welding Machines

Application & Industries

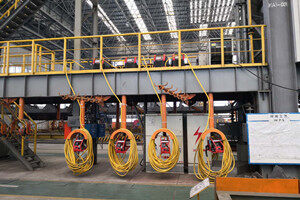

Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂/MAG Welding Machines - professionally designed for shipbuilding, marine, offshore, steel construction, and other large-scale industries. Here are some welding cases of Artsen2 CM500C Series.

Features

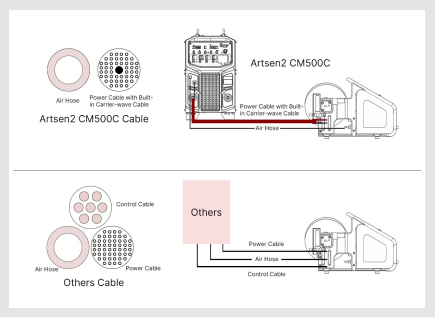

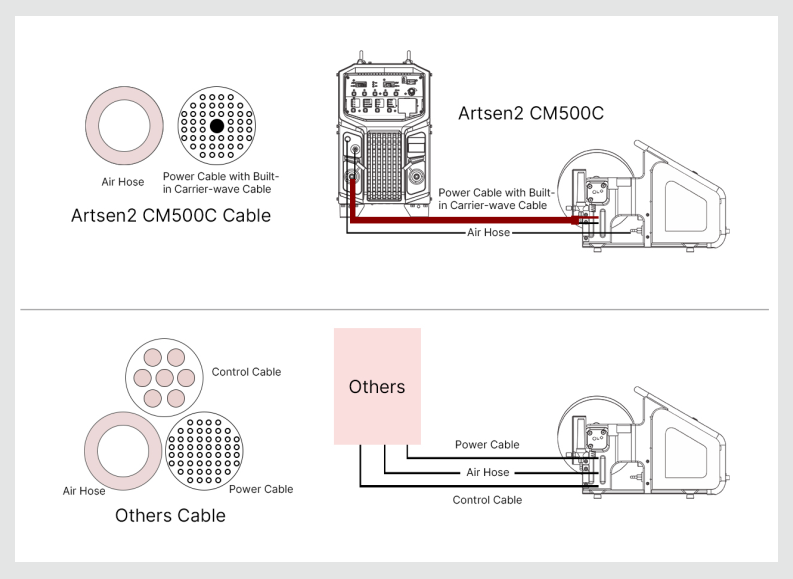

Pioneer in adapting Two-way Digital High-speed Carrier-wave

Megmeet Artsen2 CM500C Full-Digital Carrier-wave Welding Machine Cable.png

Available with many welding processes, including DC flexible transition, pulse mixed

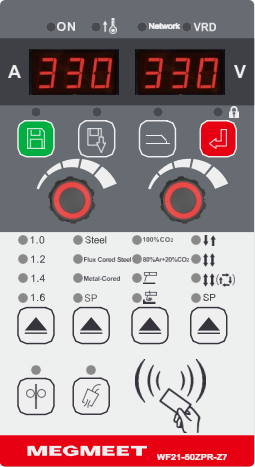

The remote control is more convenient for welders.

Supports remote adjustment on wire feeder and flexible switching: CO₂, MAG, MMA, carbon arc gouging.
Anti-electric shock and VRD function ensure personal safety.

Remote control is more convenient for welders - Megmeet Artsen2 CM500C Full-Digital Carrier-wave Welding Machine.png

1. Two-way Digital PSK High-speed Carrier-wave

Communication Technology
PSK (Phase-Shift Keying) modulation and demodulation scheme provides stronger anti-interference ability.
Carrier frequency can be adjusted within 65K-100KHz, with a wider range of adaptability;
100 meters of long-reach stable welding.

100 meters of remote stable welding - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂/MAG Welding Machine

Shipbuilding Industry Welding - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂/MAG Welding Machine

2. CO2/MAG Function

1.0, 1.2, 1.4, 1.6mm solid wire;
MAG flux-cored carbon steel wire, metal-cored wire, and other processes.

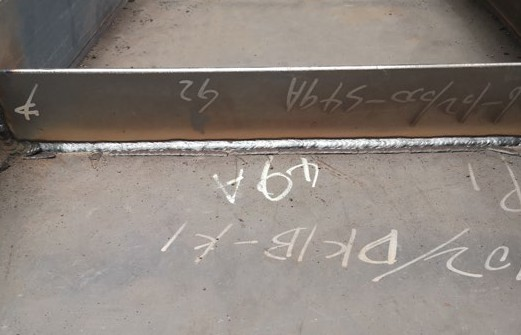

Shipbuilding Industry Welding Application

Offshore Industry Welding - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂ MAG Welding Machine.png

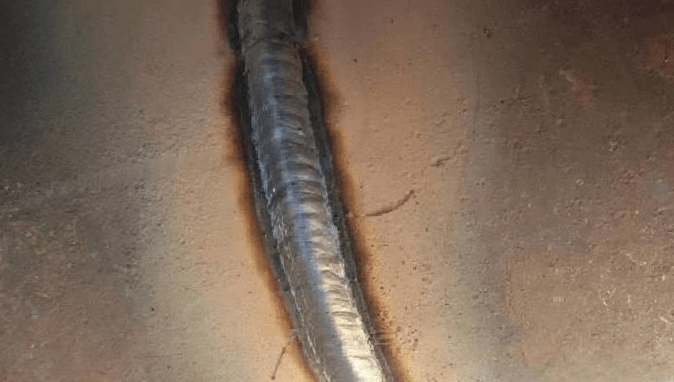

Offshore Industry Welding Application

3. MMA Function

One machine with multiple processes, able to quickly repair weld gaps and rework welds;
Suitable for long cable operations, with arc starting current and thrust current adjustment functions.

4. Carbon Arc Gouging Function

Quickly clean welding roots and rework welds;
High duty-cycle, more adaptive for long-time and high-current cleaning of medium and thick plate welding;

MMA Welding function - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂ MAG Welding Machine.png

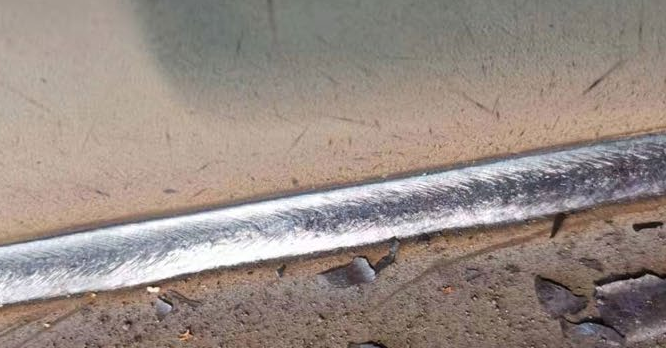

MMA Function

Carbon Arc Gouging Function - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂ MAG Welding Machine.png

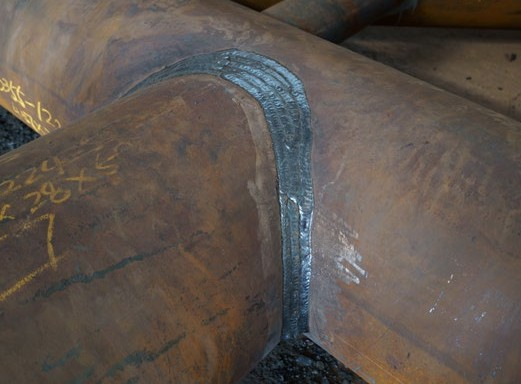

Carbon Arc Gouging Function

5. RFID Card Swiping

Easy binding welders and welding machines;
Work with Megmeet SMARC IoT welding management system to realize more intelligent functions, such as parameter issuing, welding time statistics, welding parameter traceability, etc.

RFID Card Swiping - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂/MAG Welding Machine

6. USB Interface

Ensures customers to conveniently obtain Megmeet's latest welding technology and function customization. Software can be sent by email and downloaded to a USB flash drive, and upgraded into the machine as instructions.

USB Interface - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂/MAG Welding Machine

7. First-class Energy Efficiency

The entire series of machines reaches first-class energy efficiency and saves ~3 degrees/day of electricity compared with other brands of inverter welding machines (data is based on 300A welding).

First-class Energy Efficiency - Megmeet Artsen2 CM500C Full-Digital Carrier-wave CO₂ MAG Welding Machine.png
