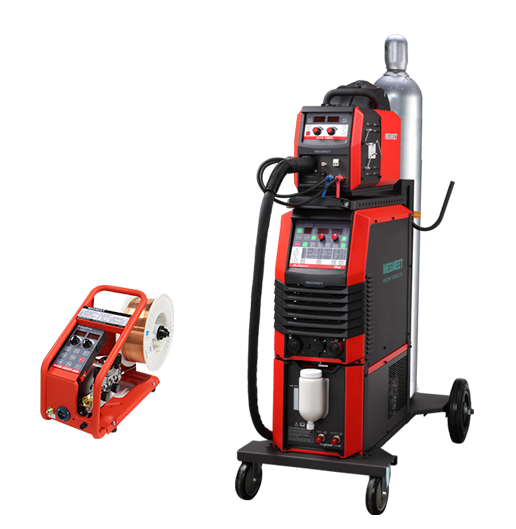

Artsen Pro Series Intelligent Platform MIG/MAG Welding Machine

Intelligent Platform of MIG/MAG Welding Automation Process.

The Artsen Pro series welding power source was developed based on the Artsen Plus series welder. It has met the demand for high-efficiency welding, especially for thick plates.

A power source of 500A 100% is available for the Artsen Pro series welder.

With inverter technology of frequency as high as 100 KHZ and high-speed sampling, Artsen Pro achieves precise control and is flexible with various welding characteristics.

The Artsen Pro series brings LSA, a featured low-spatter welding process, as standard. Thunder Fusion is also available with Artsen Pro for the advanced short-arc pulse and double-pulse MIG/MAG.

The Artsen Pro series welder meets the high-quality welding of carbon steel, stainless steel, and aluminum alloys.

Equipped with Constant Fusion, which allows wire-feeding speed at pulse mode to change automatically according to the stick-out length and keeps the penetration stabilized.

Capable of working with multiple industrial robots through multiple robotic protocols.

Anti-interference capability, especially convenient for welding automation of multiple torches.

Equipped with a USB port for upgrading, ensuring access to the most advanced welding process developed by MEGMEET and the most suitable welding software to face different welding conditions.

Artsen Pro brings various wire feeders to meet different welding applications in different markets of different budget levels.

Specification User Manual

Megmeet Artsen Pro Series Intelligent MIG/MAG Welding Machine

Features

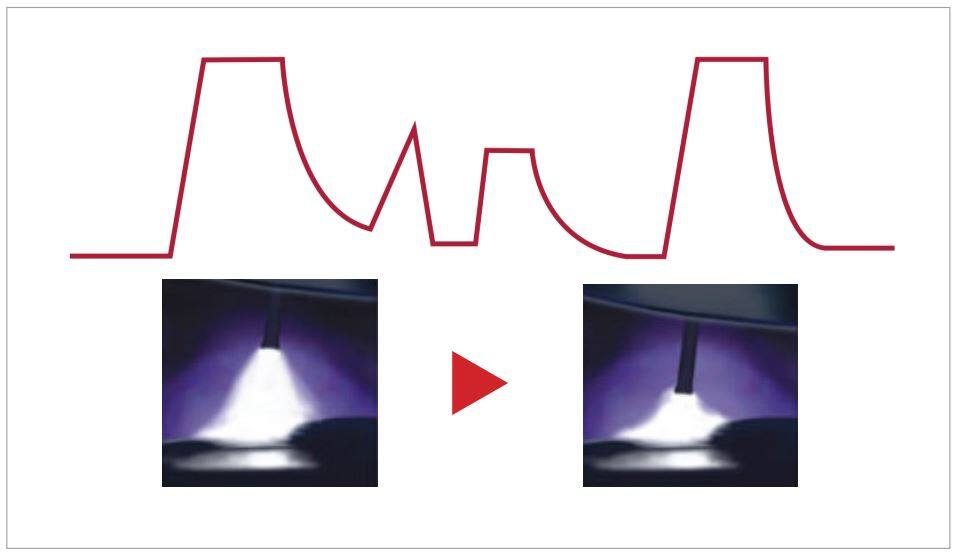

1. Thunder Fusion (Short Arc Pulse Welding)

Shot-circuit transfer was added to the waveform of the standard pulse process. It is a superb combination of synergic and pulse welding processes, together with their advantages, and achieving better results with a short welding arc.

Short Arc Pulse Welding - Megmeet Artsen pro MIG/MAG welder

Features in the Welding Process:

Welding with lowered voltage to achieve spatter-free and beautiful results with the pulse process
Short in transfer arc, higher in transfer frequency, stronger in anti-interference capability
More friendly to robotic welding with high arc stiffness and sharp arc direction
Heat input lowered to avoid defects like undercuts
Deposition rate increased
Welding spatter is eliminated. The welding process becomes well-controlled

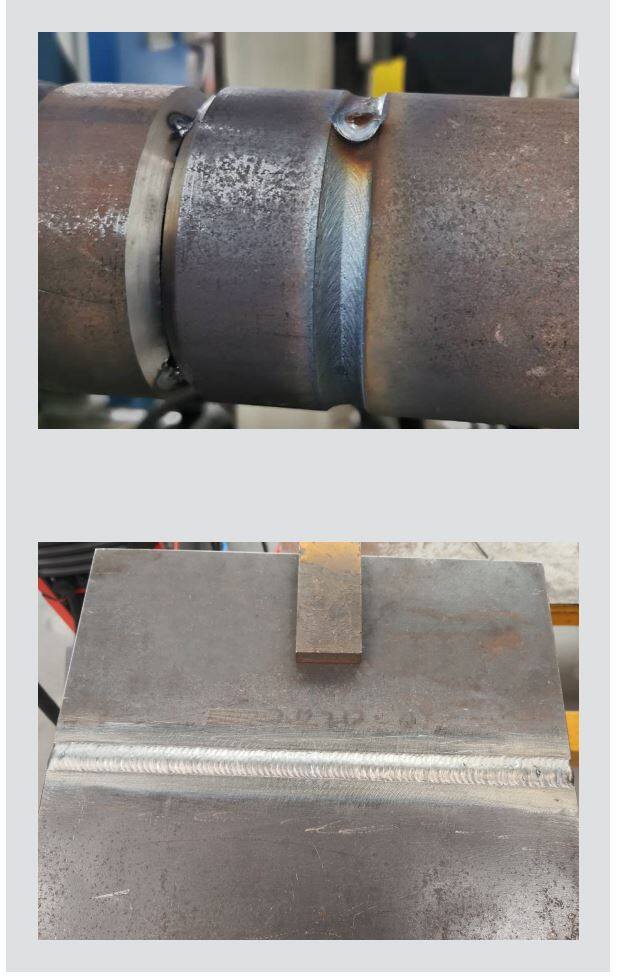

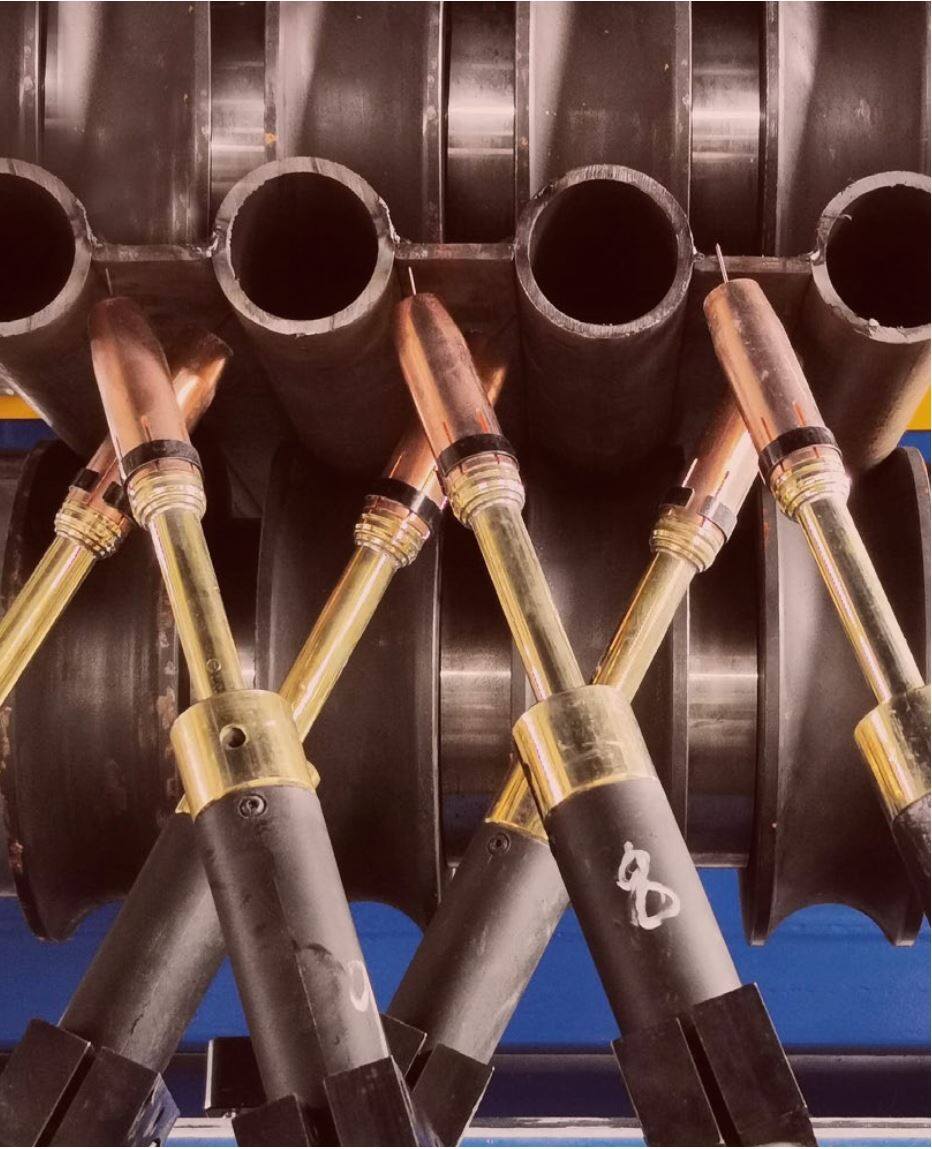

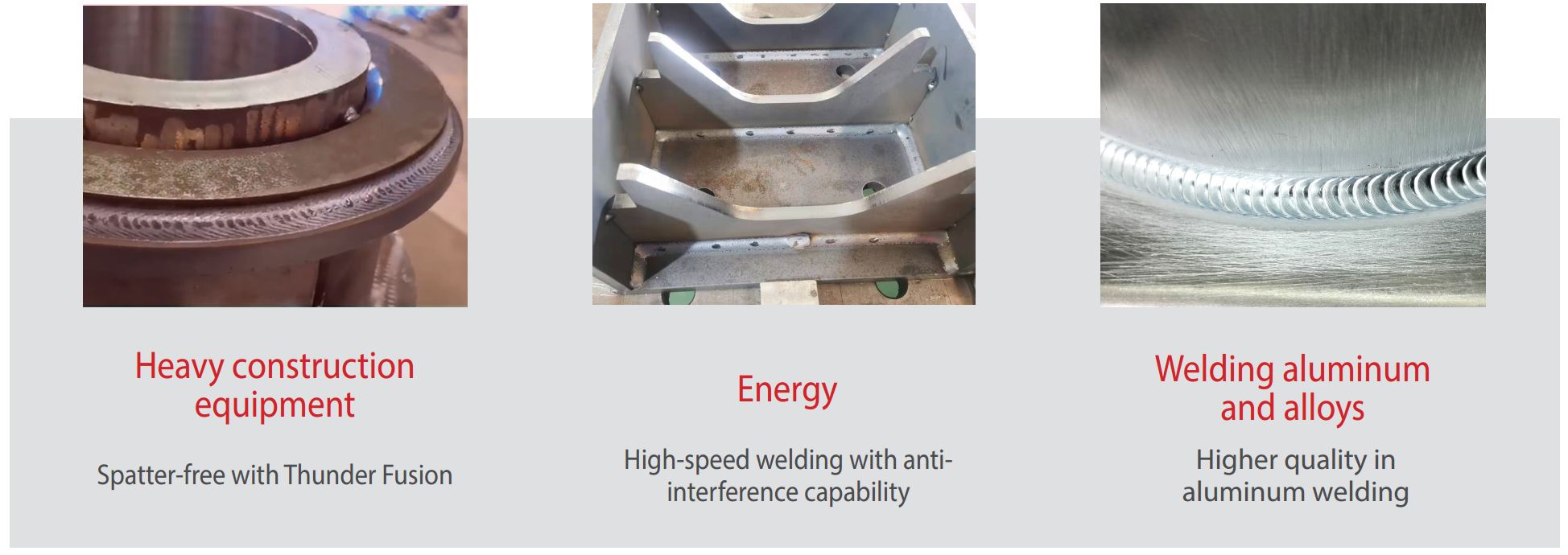

Short Arc Pulse Welding application - Megmeet Artsen pro MIG/MAG welder Engineering mechinery - Megmeet Artsen pro MIG/MAG welder

2. LSA (Low-spatter Arc for MAG / CO2)

Optimized and upgraded based on standard synergic MIG/MAG, through software-based precise control, the molten droplet of short-circuit transfer is softly disconnected so that the spatter caused by the traditional liquid bridge explosion and electromagnetic repulsion is reduced. The molten pool is calmer, and the weld formation is more beautiful.

Process Characteristics:

Accurate in software control for high-frequency short-circuit transfer. Lower in spatter. Lower in heat input. Highly suitable for sheet metal welding
Soft in welding arc and fine with spatter particles. Less spatter remains on the workpiece. Lower with rework, like grinding after welding. Higher total working efficiency
Higher in welding speed. Better in deformation control. More helpful in welding quality

Low-spatter Arc for MAG/CO2 - Megmeet Artsen pro MIG/MAG welding machines

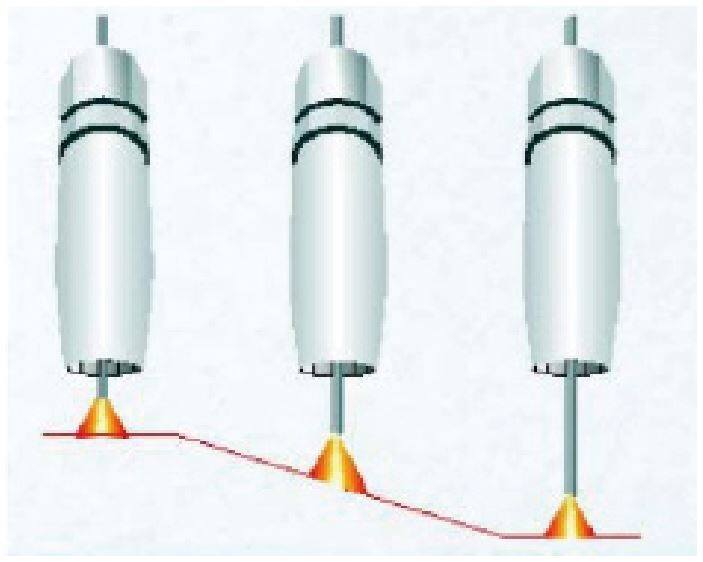

3. Consistent Fusion

When the base material is uneven and the stick-out length changes, the power source automatically adjusts the wire-feeding speed instantly, and prevents the melting depth from being affected by the changing stick-out length. Welding quality is therefore improved

Consistent Fusion - Megmeet Artsen pro MIG/MAG welder

Process characteristics：

The welding arc has high dynamic characteristics and stability, stable penetration, and high-quality
Suitable for automated welding by robots and special machines

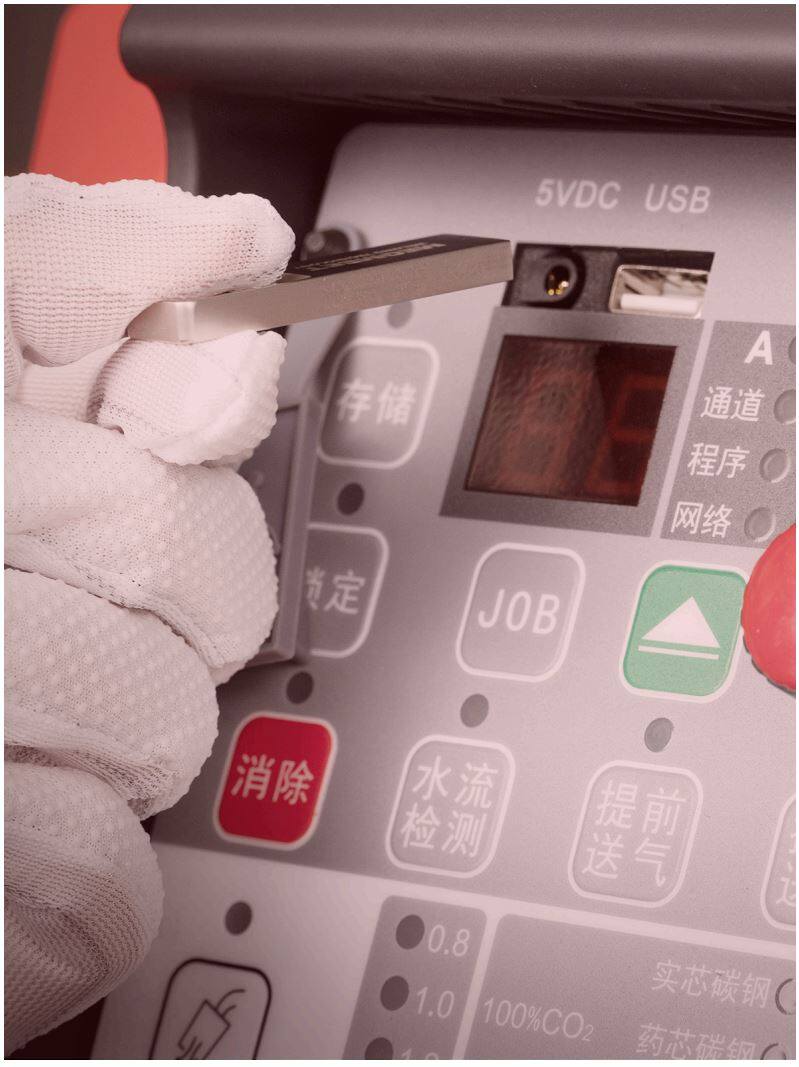

4. USB Port

It benefits welders by ensuring fast access to the latest or any tailor-made welding process by MEGMEET. The welding process could be shared and downloaded online into a USB, and used thru the port for upgrading

USB Port - MEGMEET Artsen pro MIG/MAG welder
