Dex2 M D/P/Q Series Multi-functional Software Low-splash MIG/MAG Welders 350/500A

Full Digital IGBT Inverter Multi-functional MIG/MAG Welding Machines.

Optimal welding programs in LSA (low-spatter-arc welding realized by software algorithm), quick pulse, high-speed weld, and others. Be weldable in multiple materials: carbon steel, stainless steel, aluminum alloy, and others;

"Chopper" control technology is applied in software to precisely control droplets, and reduce spatter by more than 50%;

Unique quick pulse process integrates advantages of pulse and DC short circuit, and welding speed is increased by more than 20% compared with conventional pulse welding;

Wider voltage range, high current and low voltage, lower heat input, higher fusion efficiency, thin plate welding is comparable to TAP-TYPE machine;

Adaptive arc-start retraction technology increases arc start success rate to almost 100%;

Inverter frequency up to 110KHz enables higher control precision and a more stable arc;

Comprehensive communication interfaces are able to communicate with different brands of robots;

Built-in touch sensing function with 80-400 voltage makes it easier to break down the rust on the surface of workpiece;

Acting national standard of first-level energy efficiency;

IOT interface is reserved to connect with Megmeet SMARC intelligent welding cloud management system.

U-disk upgrade function ensures customers to easily obtain Megmeet's most cutting-edge welding technology；

Application industries: engineering machinery, steel structures, special vehicles, auto parts, two/tricycles, containers, petroleum and petrochemical industries, etc.

Specification User Manual

Megmeet Dex2 M Series MIG Welding Machine

Features

I. LSA (Low Spatter Arc by Software Algorithm)

Fine management in droplet transfer through software algorithm so that short-circuit transfer of droplet is softly cut off, which greatly reduces spatter caused by liquid-bridge bursting and electromagnetic repulsion, and helps fusion pool be more stable and weld shape be more beautiful.

LSA (Low Spatter Arc by Software Algorithm) - Megmeet Dex2 M Series MIG Welder

Welding Features:

Compared with conventional DC welding, spatter quantity is cut down by 50%, which reduces cleaning and grinding time and improves production efficiency;
Fluctuation of fusion pool is small, weld surface is more delicate, and weld shape is more beautiful;
Lower heat input and less deformation;
Stronger gap adaptability.

Low Spatter Arc by Software Algorithm - Megmeet Dex2 M Series MIG Welder

II. Quick Pulse Technology (QPT)

Unique quick pulse welding technology adopts a three-level main power topology. High-speed sampling and control advantages, brought by the inverter frequency up to 110kHz, can reach a critical state between short circuit and pulse spray transition.
With shorter droplet transition distance, lower arc, and faster welding speed, the pulse speed is increased by more than 20%. The service life of wearing parts is lengthened and the weld shape is better, meeting the actual needs of manual welding.

Pain Points in Conventional Pulse Welding	VS	Megmeet Quick Pulse Technology(QPT)
Speed is slow: 30% slower than DC welding Weld formation is difficult to control: high heat input, long arc, and many undercuts High Requirements in Mixed Gas: high requirements in the 80/20 gas ratio and resulted in higher cost Accessories Loss: high voltage and high pulse peak value bring serious heating to the torch and the high cost of accessories and shorter service life.	VS	Welding speed is faster and welding speed is increased by 20%, compared with conventional pulse; Short arc length, good stiffness, strong anti-interference ability, more suitable for high-speed welding of medium and thick plates, supporting concentrated arc energy and better penetration; Low arc heat input increases the service life of accessories; Wide voltage range, strong welding adaptability, simpler operation, more popular by welders.

critical pulse - Megmeet Dex2 M Series MIG Welder critical pulse welding technology - Dex2 M Series MIG Welder critical pulse welding - Megmeet Dex2 M Series MIG Welder

III. High-Speed DC Welding

With a wider adaptive range of voltage, the same current is able to match lower voltage (10% lower than other welding machines);
Lower heat input, higher deposition efficiency, and thin-plate welding performance are comparable with tap-type machines.

high speed DC welding - Megmeet Dex2 M Series MIG Welder

IV. Wire Retraction Function in Arc Starting

When the welding machine detects an arc starting signal, the wire will retract at high speed, which greatly improves the quality and success rate of arc starting, and greatly reduces various arc starting issues.

Wire Retraction Function in Arc Starting - Megmeet Dex2 M Series MIG Welder

V. Up-down Torch (optional)

Up-down torch is optional to conveniently adjust welding parameters on the torch(current, voltage, etc).

Up-down Welding Torch (optional) - Megmeet Dex2 M Series MIG Welder

VI. High Reliability

high welding reliability - Megmeet Dex2 M Series MIG Welder

Strong environmental adaptability, suitable for working under tough environments;
Stable and reliable: stability is the base of intelligent welding machines!
Consistency: consistent performance by any machine, anytime and anywhere!

VII. 400V High-voltage Touch Sensing Function

Built-in high-voltage touch sensing function with adjustable range 80~400V, no need to separately buy high-voltage touch sense device;
High reliability and effective penetration of oil stains, rust, water stains, etc., fast touch-sense with high precision, and strong adaptability to robots;
Current-limiting design ensures welding within a safe current range, effectively protecting the safety of welders and welding machines;

VIII. U-disk Interface

To ensure customers conveniently obtain Megmeet's foremost welding programs and function customization;
New software can be programmed into welding machines through a U disk.

U-disk Interface - Megmeet Dex2 M Series MIG Welder

IX. Intelligent Upgrade

With an additional robotic accessories package, the manual-type welding power source can be expanded to a robotic welding power source to help users save money.

Intelligent Upgrade - Megmeet Dex2 M Series MIG Welder

X. Water Cooler (Optional)

Circulating Water Cooler AnyCool-66
Water cooler power supply	Powered by welding machine
Rated power	370W
Rated voltage	380V AC
Cooling water capacity	6.8L
Cooling water flow	3.5L/min
Cooling water maximum lift	20m
Flow alarm	√

Water Cooler (Optional) - Megmeet Dex2 M Series MIG Welder

Dex2 Communication Protocols with Robots

Megmeet Dex2 Communication Protocols with Robots.png

Robotic Wire Feeder Selection

Megmeet Dex2 Robotic Wire Feeder Selection.png

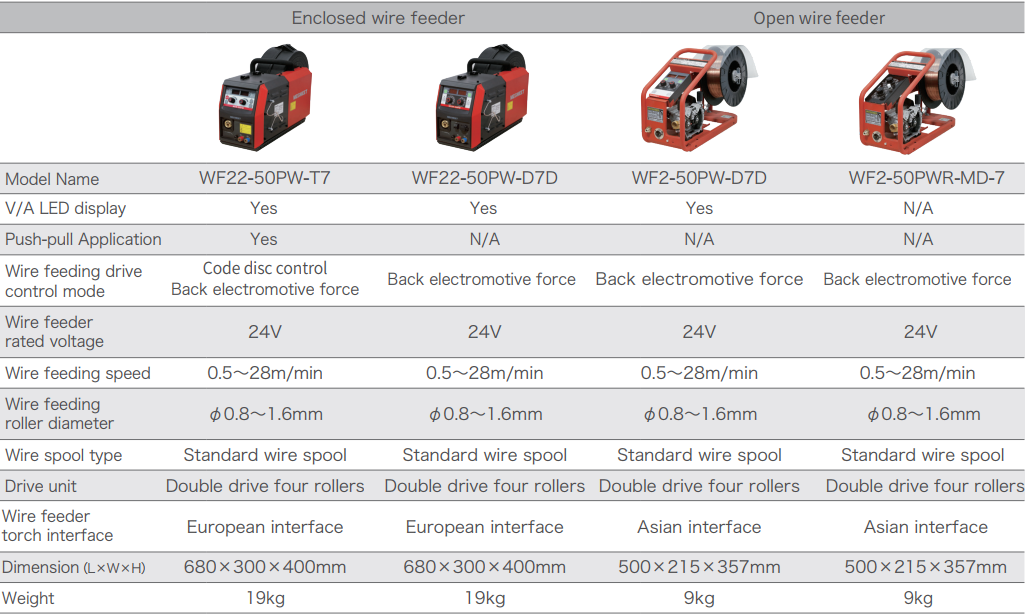

Manual Wire Feeder Selection

Megmeet Dex2 Manual Wire Feeder Selection.png

Stock Code
