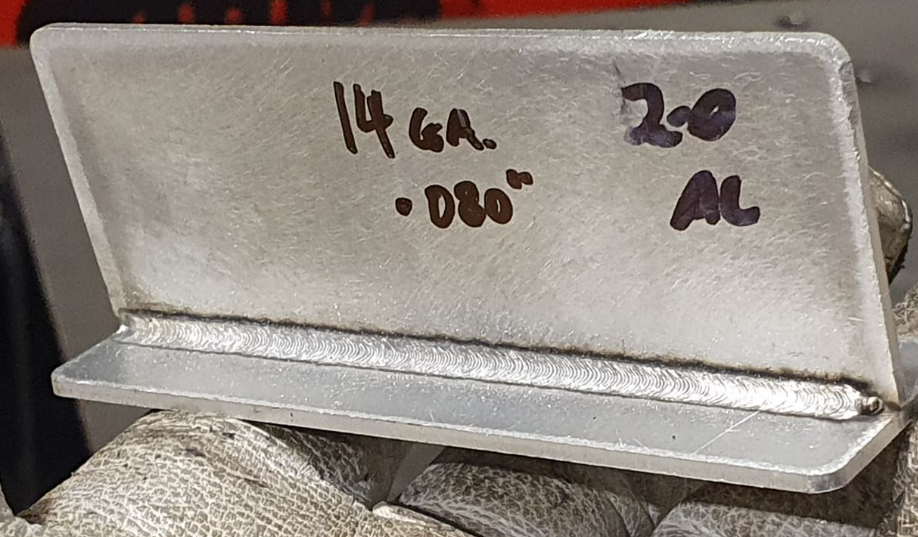

Laser Welding Aluminum Machines, Problems, and Settings

Laser welding aluminum can be challenging, but with the right machines and settings, it can yield precise, high-quality results. Whether you're new to aluminum laser welding or looking to improve your current setup, understanding the key elements involved can save time and improve output. In this guide, we'll explore the best aluminum laser welding machines, common welding problems, and the ideal settings to get the job done right.

I. Why Choose Laser Welding for Aluminum?

Aluminum is widely used in industries like automotive, aerospace, and electronics due to its lightweight properties and excellent corrosion resistance. However, it's notoriously difficult to weld using conventional methods due to its high thermal conductivity and reflectivity. Laser welding provides the precision, speed, and control necessary to achieve high-quality aluminum welds with minimal distortion.

Key Benefits of Laser Welding Aluminum:

• Reduced heat input minimizes warping


• Cleaner weld seams with less post-processing

• Fast welding speeds improve production efficiency

II. Choosing the Right Aluminum Laser Welding Machine

The success of aluminum laser welding largely depends on selecting the right machine. For industrial use, you need a machine that combines power, precision, and versatility. One excellent option is Megmeet Lux 4-in-1 (Welding/Cutting/Rust Removal/Weld Seam Cleaning) Laser Welding Machine (1.5KW/2KW/3KW), which offers:

1. High-quality industrial-grade laser generator with sufficient power to handle various aluminum thicknesses;

2. Industrial-grade laser electronic control and optical control solutions with stable laser power output and small power fluctuation;


3. Support 10 JOB of parameters for both handheld and robotic welding;

4. Professional dual-temperature & dual-control water cooling system to ensure long-term welding;


5. Minimal maintenance requirements

This machine is a great breakthrough in industrial laser welding, making it a go-to solution for heavy-duty industrial manufacturers aiming to scale production while maintaining quality.

III. Common Laser Welding Aluminum Problems

Even with the right equipment, laser welding aluminum presents unique challenges. Here are some of the most common problems you might encounter:

1) Porosity

Aluminum’s high thermal conductivity means it cools quickly, which can lead to gas entrapment and porosity. This weakens the weld and may cause cracks. Solutions include:

• Preheating the material to reduce cooling speed

• Adjusting the laser's power for deeper penetration

2) Cracking

• Aluminum alloys, especially the 6000 and 7000 series, are prone to cracking. Proper material preparation and fine-tuning the welding parameters can help mitigate this.

3) Reflectivity

• Aluminum’s reflective surface can cause the laser beam to scatter, reducing weld efficiency. Using a laser welding machine with higher power levels, such as the Lux 4-in-1 Laser Welding Machine, can help overcome this issue.

IV. The Role of Aluminum Alloys in Laser Welding

Not all aluminum alloys are created equal, and different alloys respond differently to laser welding. For example:

1. Pure Aluminum (1000 series): Easy to weld with minimal cracking.

2. 6000 Series: More challenging due to its high silicon content, requiring careful heat management.

3. 7000 Series: Highly susceptible to cracking, making it essential to use preheating and optimized settings.

Understanding the characteristics of the aluminum you’re working with can help you adjust your laser welding process for better results.

V. Best Settings for Laser Welding Aluminum

Getting the right laser welding settings is crucial for achieving strong, clean welds. Here are some key settings to adjust:

1) Laser Power

The laser power setting is crucial because aluminum is highly reflective, requiring more energy to penetrate and weld effectively.

• Recommended Power Range: 1.5KW to 3KW (depending on thickness)

• Thin Aluminum (1-3mm): 1.5KW to 2KW

• Thick Aluminum (4mm+): 2KW to 3KW or higher

Higher power levels help overcome reflectivity and ensure deep weld penetration, especially for thicker materials. A machine like the Lux 4-in-1 Laser Welding Machine offers power options between 1.5KW and 3KW, allowing you to choose the appropriate setting based on the aluminum thickness.

2) Welding Speed

Welding speed is another key factor. If the speed is too fast, the weld might lack penetration, while too slow can cause excessive heat buildup and warping.

• Recommended Welding Speed: 20-60 inches per minute (IPM)

• For Thin Aluminum: Faster speeds (~50-60 IPM) to prevent overheating

• For Thick Aluminum: Slower speeds (~20-30 IPM) for better penetration

Adjusting the speed to match the material thickness helps balance penetration and heat input.

3) Pulse vs. Continuous Wave Mode

Laser welding aluminum can be done in either pulsed or continuous wave mode, depending on the specific application.

• Pulse Mode: Best for thin materials or when precision is needed

• Continuous Wave: More suitable for thicker materials or high-speed welding

Pulse mode helps minimize heat input and distortion, while continuous mode ensures consistent, deeper welds on thicker aluminum.

4) Focal Position

The focal point of the laser plays a critical role in determining weld quality. For aluminum, focusing slightly below the surface can enhance penetration and reduce reflectivity.

• Focal Point: ~0.5mm below the surface of the aluminum

This helps concentrate the laser energy where it’s most needed for deeper welds and reduces the chance of beam reflection.

5) Shielding Gas

Shielding gas protects the weld pool from contamination and affects the overall weld quality. For aluminum, argon is the most commonly used shielding gas due to its inert properties.

• Recommended Gas: 100% Argon

• Flow Rate: 20-40 cubic feet per hour (CFH)

Using argon prevents oxidation and porosity in the weld, ensuring a cleaner, stronger bond.

6) Preheating

Preheating aluminum can help reduce the chances of cracking and improve weld penetration, especially for thicker materials or challenging alloys.

• Preheating Temperature: 150°C - 200°C. Preheating helps slow down the cooling rate, which can prevent cracking and improve the overall weld quality.

7) Beam Diameter

The laser beam diameter should be optimized based on the thickness of the aluminum to balance penetration and heat input.

• Recommended Beam Diameter: 0.2mm to 0.5mm. A smaller diameter provides higher energy density for deeper welds, while a larger diameter reduces the chances of excessive heat concentration.

VI. Practical Tips for Improving Aluminum Laser Welds

Here are a few extra tips to enhance your aluminum laser welding performance:

1. Clean the Surface: Dirt, grease, and oxides on the aluminum surface can lead to poor weld quality. Always clean the material thoroughly before welding.

2. Preheat the Material: For thicker aluminum or challenging alloys, preheating can prevent cracking and improve weld penetration.

3. Monitor Heat Input: Control the heat input carefully to avoid warping and distortion, especially on thinner materials.

Conclusion: Is Laser Welding Aluminum Right for Your Business?

Laser welding aluminum offers numerous benefits for manufacturers looking for precision, speed, and high-quality results. However, it also comes with challenges that can be addressed by selecting the right equipment and optimizing your settings. By investing in advanced solutions like the Lux 4-in-1 Laser Welding Machine (1.5KW/2KW/3KW) and mastering key welding techniques, you can elevate your production capabilities and ensure consistent, strong welds across a variety of aluminum alloys.
